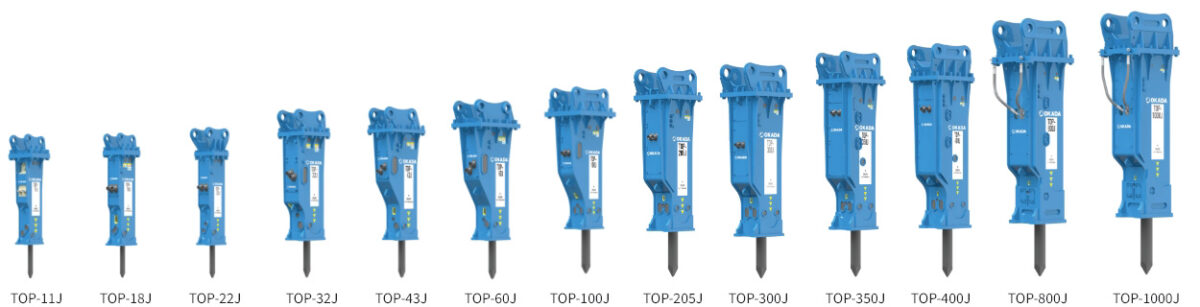

- TOP-11J
- TOP-18J
- TOP-22J
- TOP-32J
- TOP-43J
- TOP-60J
- TOP-100J
- TOP-205J
- TOP-300J
- TOP-350J
- TOP-400J
- TOP-800J
- TOP-1000J

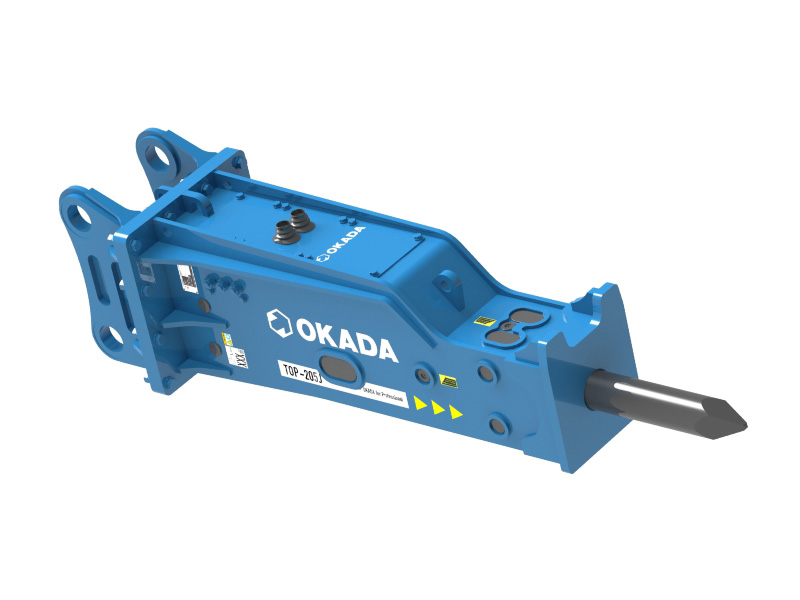

HYDRAULIC BREAKERS
Premium quality equals longer lifetime of breaker and carrier machine.
Power, reliability and high-efficiency.
Performance tests carried-out on all units at the factory.
OKADA TOP Series Promotion 2025

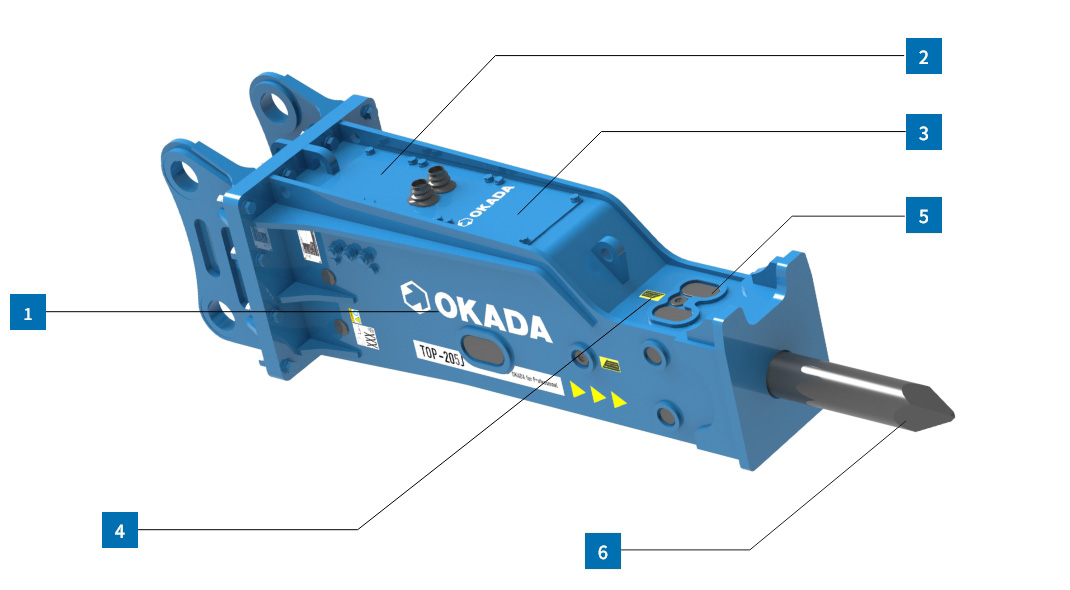

Features
- 1
- Piston:
The cushioning effect of the low pressure gas sealed in the Back cap has made striking force even more powerful.
- 2
- Valve:
By external control valve on the breaker body, the structure is simple, light weight, and highly maintainable.(*Excluding TOP-11J~32J)
- 3
- Accumulator:
Makes high impact power (From TOP-205J~)
It has mechanism that reduces the bunden on the excavator and has excellent durability.
- 4
- Shank bushing:
Extended length provides a larger bearing surface and minimizes wear.
- 5
- Oval chisel pin:
The strong oval shape allows turning over right, left, up and down, distributing wear evenly and extending service life.
- 6
- Chisel:
Selected special high quality steel and the most advanced heat treatment available anywhere ensure outstanding wear and shock resistances.
More Information
Specifications
Unit
- Working Pressure
- Required Oil Flow For Breaker
- Frequency
- Operating Weight
- Overall Length
- Chisel Dia.
- Suitable Carrier Machine
- Carrier Output Flow Range
Working Pressure
[Mpa]
Required Oil Flow For Breaker
[L/min]
Frequency
[bpm]
Operating Weight
[kg]
Overall Length
[mm]
Chisel Dia.
[mm]
Suitable Carrier Machine
[Ton]
Carrier Output Flow Range
[lpm]
TOP-11J
Working Pressure
9 - 12
Required Oil Flow For Breaker
15 - 30
Frequency
800 - 1400
Operating Weight
100
Overall Length
1150
Chisel Dia.
40
Suitable Carrier Machine
0.5 - 2.0
Carrier Output Flow Range
20 - 36
TOP-18J
Working Pressure
9 - 12
Required Oil Flow For Breaker
20 - 40
Frequency
700 - 1200
Operating Weight
140
Overall Length
1270
Chisel Dia.
45
Suitable Carrier Machine
0.8 - 2.5
Carrier Output Flow Range
26 - 48
TOP-22J
Working Pressure
9 - 12
Required Oil Flow For Breaker
20 - 50
Frequency
600 - 1100
Operating Weight
180
Overall Length
1450
Chisel Dia.
53
Suitable Carrier Machine
1.3 - 3.5
Carrier Output Flow Range
26 - 60
TOP-32J
Working Pressure
11 - 16
Required Oil Flow For Breaker
35 - 50
Frequency
850 - 1150
Operating Weight
260
Overall Length
1438
Chisel Dia.
61
Suitable Carrier Machine
2.5 - 4.5
Carrier Output Flow Range
45 - 60
TOP-43J
Working Pressure
11 - 16
Required Oil Flow For Breaker
35 - 55
Frequency
600 - 850
Operating Weight
340
Overall Length
1654
Chisel Dia.
68
Suitable Carrier Machine
4.0 - 6.5
Carrier Output Flow Range
50 - 65
TOP-60J
Working Pressure
11 - 16
Required Oil Flow For Breaker
48 - 70
Frequency
740 - 950
Operating Weight
460
Overall Length
1739
Chisel Dia.
74
Suitable Carrier Machine
5.0 - 8.5
Carrier Output Flow Range
65 - 90
TOP-100J
Working Pressure
14 - 18
Required Oil Flow For Breaker
70 - 110
Frequency
550 - 1000
Operating Weight
880
Overall Length
2192
Chisel Dia.
105
Suitable Carrier Machine
9.0 - 15
Carrier Output Flow Range
105 - 140
TOP-205J
Working Pressure
15 - 18
Required Oil Flow For Breaker
110 - 135
Frequency
360 - 560
Operating Weight
1800
Overall Length
2726
Chisel Dia.
135
Suitable Carrier Machine
18 - 26
Carrier Output Flow Range
160 - 200
TOP-300J
Working Pressure
16 - 18
Required Oil Flow For Breaker
160 - 190
Frequency
370 - 530
Operating Weight
2670
Overall Length
3050
Chisel Dia.
150
Suitable Carrier Machine
24 - 36
Carrier Output Flow Range
220 - 280
TOP-350J
Working Pressure
16 - 18
Required Oil Flow For Breaker
200 - 240
Frequency
300 - 350
Operating Weight
2900
Overall Length
3354
Chisel Dia.
155
Suitable Carrier Machine
28 - 45
Carrier Output Flow Range
280 - 310
TOP-400J
Working Pressure
16 - 18
Required Oil Flow For Breaker
220 - 280
Frequency
250 - 320
Operating Weight
4120
Overall Length
3802
Chisel Dia.
170
Suitable Carrier Machine
40 - 60
Carrier Output Flow Range
310 - 360
TOP-800J
Working Pressure
16 - 20
Required Oil Flow For Breaker
320 - 420
Frequency
220 - 300
Operating Weight
6150
Overall Length
4271
Chisel Dia.
190
Suitable Carrier Machine
60 - 80
Carrier Output Flow Range
380 - 480
TOP-1000J
Working Pressure
18 - 21
Required Oil Flow For Breaker
380 - 450
Frequency
200 - 280
Operating Weight
7150
Overall Length
4500
Chisel Dia.
210
Suitable Carrier Machine
75 - 120
Carrier Output Flow Range
420 - 500
(Note) The above specifications are subject to change without notice.
The above specifications assume the use of an OKADA universal pin mount.
