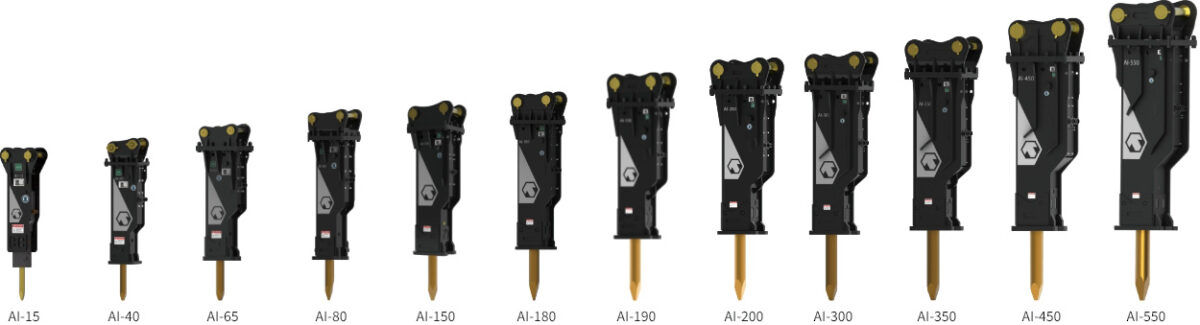

- AI-15
- AI-40
- AI-65
- AI-80
- AI-150
- AI-180
- AI-190
- AI-200
- AI-300
- AI-350
- AI-450
- AI-550
HYDRAULIC BREAKERS
Provide top-tier performance across all job sites_ quarries, mining operations, general construction, and demolition projects.
OKADA AI Series Promotion 2025

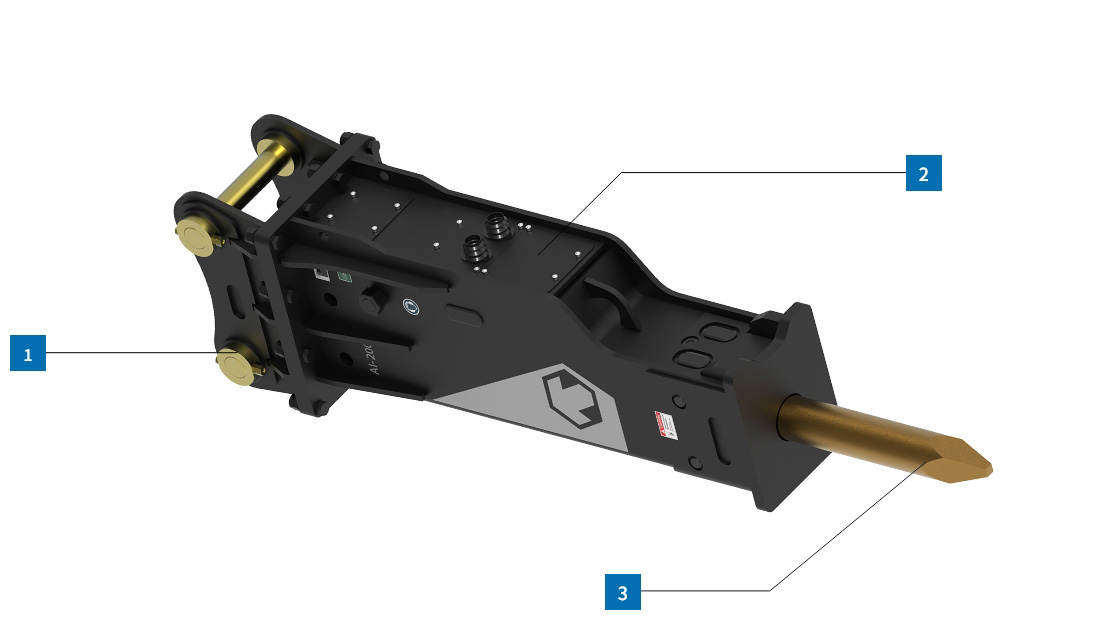

Features
- 1
- Powerful components:
*Upmost Heat-treated Main body.
*Enlarged size of Side rod and ACC.
*High quality dampers and pads
Ensure phenomenal performance and present distinctly higher level of reliability.
- 2
- Durable BOX type bracket:
Manufactured under strict quality control to endure any tough circumstances of job sites.
- 3
- Durable chisel:
Selected special high-quality material and strict quality control present outstanding performance and durability.
More Information
Specifications
Unit
- Working Pressure
- Required Oil Flow For Breaker
- Frequency
- Operating Weight
- Overall Length
- Chisel Dia.
- Suitable Carrier Machine
- Carrier Output Flow Range
Working Pressure
[Mpa]
Required Oil Flow For Breaker
[L/min]
Frequency
[bpm]
Operating Weight
[kg]
Overall Length
[mm]
Chisel Dia.
[mm]
Suitable Carrier Machine
[Ton]
Carrier Output Flow Range
[lpm]
AI-15
Working Pressure
9 - 12
Required Oil Flow For Breaker
15 - 30
Frequency
800 - 1400
Operating Weight
119
Overall Length
1247
Chisel Dia.
40
Suitable Carrier Machine
0.8 - 2
Carrier Output Flow Range
15 - 42
AI-40
Working Pressure
9 - 12
Required Oil Flow For Breaker
23 - 70
Frequency
600 - 1000
Operating Weight
192
Overall Length
1363
Chisel Dia.
53
Suitable Carrier Machine
2.5 - 4
Carrier Output Flow Range
30 - 70
AI-65
Working Pressure
11 - 14
Required Oil Flow For Breaker
30 - 65
Frequency
500 - 900
Operating Weight
342
Overall Length
1558
Chisel Dia.
68
Suitable Carrier Machine
4 - 6.5
Carrier Output Flow Range
35 - 70
AI-80
Working Pressure
12 - 15
Required Oil Flow For Breaker
35 - 75
Frequency
400 - 800
Operating Weight
435
Overall Length
1850
Chisel Dia.
75
Suitable Carrier Machine
6 - 9
Carrier Output Flow Range
10 - 110
AI-150
Working Pressure
15 - 17
Required Oil Flow For Breaker
65 - 100
Frequency
350 - 700
Operating Weight
894
Overall Length
2235
Chisel Dia.
100
Suitable Carrier Machine
10 - 15
Carrier Output Flow Range
80 - 140
AI-180
Working Pressure
15 - 17
Required Oil Flow For Breaker
90 - 120
Frequency
350 - 650
Operating Weight
1225
Overall Length
2665
Chisel Dia.
125
Suitable Carrier Machine
15 - 18
Carrier Output Flow Range
100 - 150
AI-190
Working Pressure
16 - 18
Required Oil Flow For Breaker
97 - 139
Frequency
350 - 600
Operating Weight
1624
Overall Length
2737
Chisel Dia.
135
Suitable Carrier Machine
16 - 21
Carrier Output Flow Range
120 - 200
AI-200
Working Pressure
16 - 18
Required Oil Flow For Breaker
97 - 139
Frequency
350 - 500
Operating Weight
1810
Overall Length
2849
Chisel Dia.
140
Suitable Carrier Machine
18 - 26
Carrier Output Flow Range
120 - 200
AI-300
Working Pressure
16 - 18
Required Oil Flow For Breaker
150 - 210
Frequency
300 - 450
Operating Weight
2357
Overall Length
3035
Chisel Dia.
150
Suitable Carrier Machine
25 - 30
Carrier Output Flow Range
208 - 290
AI-350
Working Pressure
16 - 18
Required Oil Flow For Breaker
180 - 240
Frequency
300 - 450
Operating Weight
2428
Overall Length
3273
Chisel Dia.
155
Suitable Carrier Machine
28 - 35
Carrier Output Flow Range
220 - 315
AI-450
Working Pressure
16 - 18
Required Oil Flow For Breaker
200 - 260
Frequency
250 - 400
Operating Weight
3100
Overall Length
3372
Chisel Dia.
165
Suitable Carrier Machine
30 - 45
Carrier Output Flow Range
250 - 340
AI-550
Working Pressure
16 - 18
Required Oil Flow For Breaker
210 - 290
Frequency
200 - 350
Operating Weight
3661
Overall Length
3617
Chisel Dia.
175
Suitable Carrier Machine
40 - 55
Carrier Output Flow Range
280 - 360
(Note) The above specifications are subject to change without notice.
The above specifications assume the use of an OKADA universal pin mount.
