PRIMARY CRUSHERS

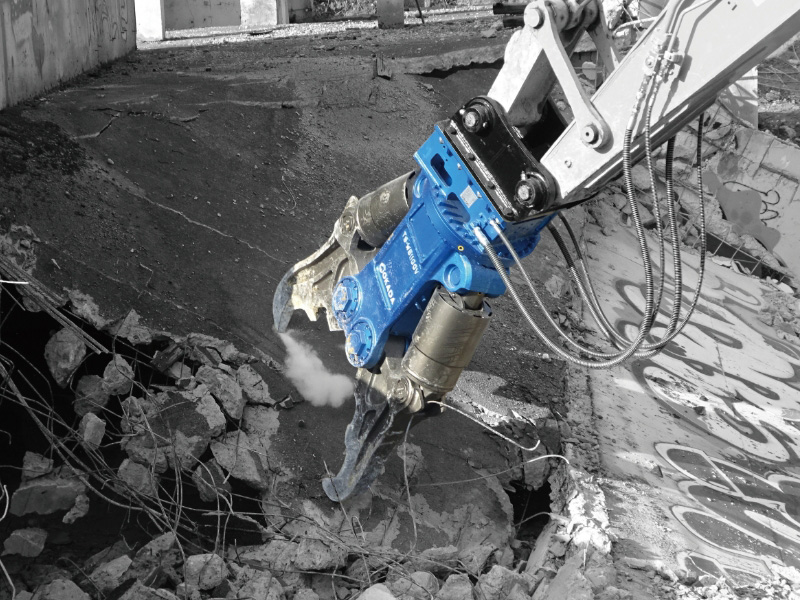

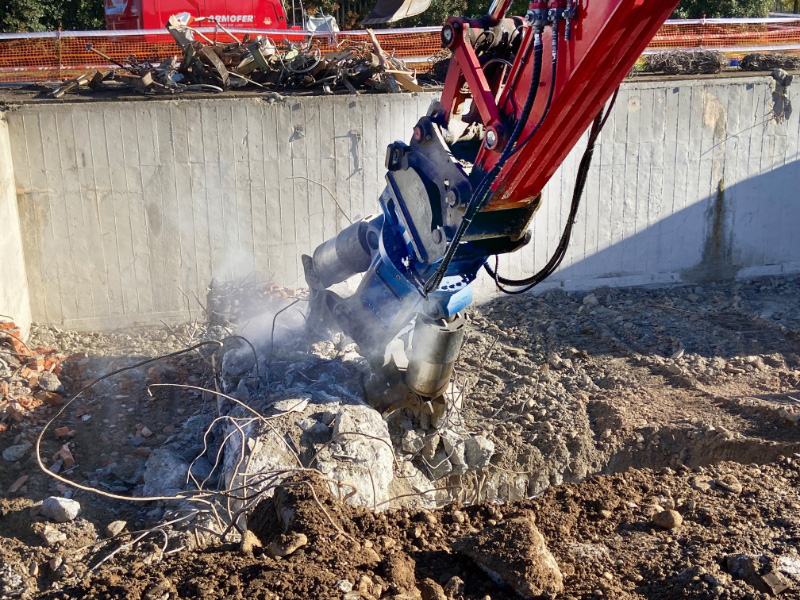

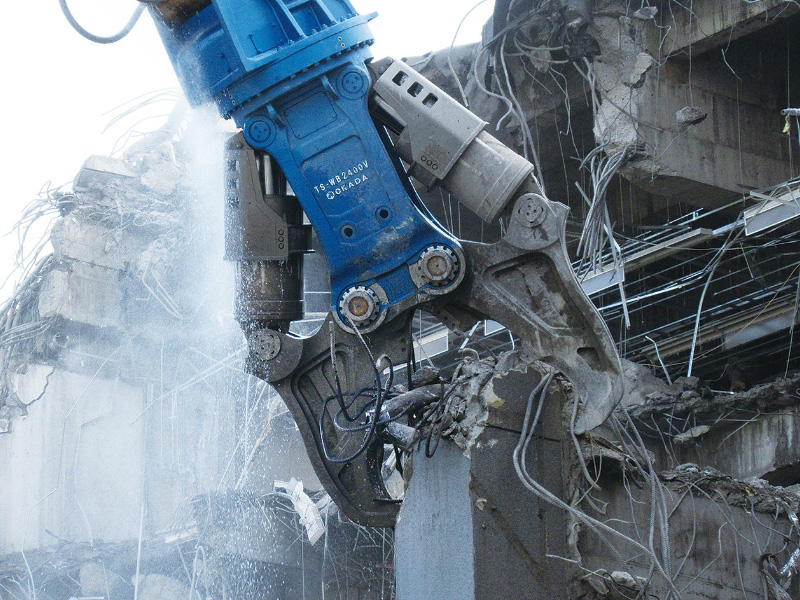

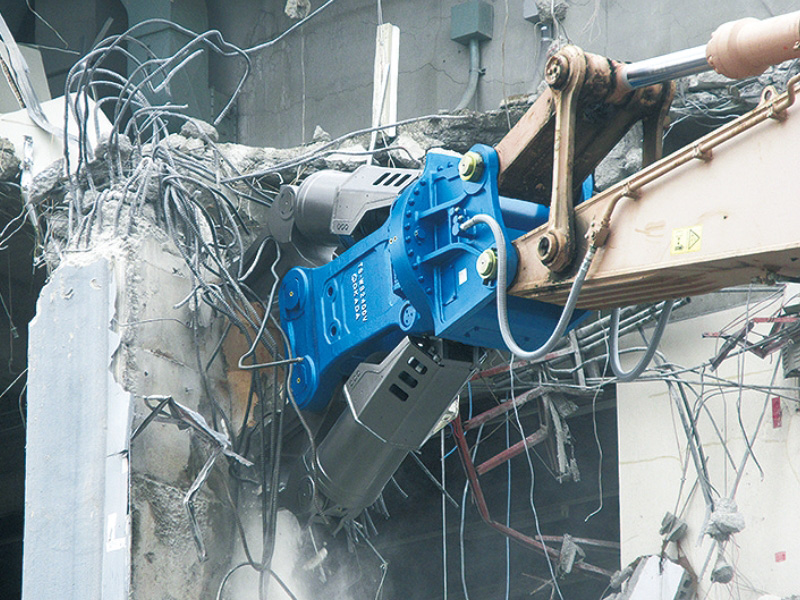

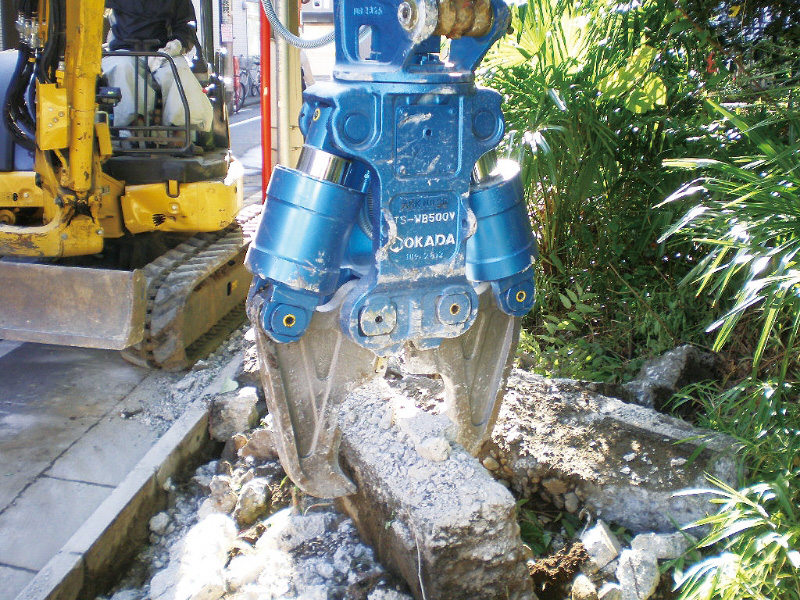

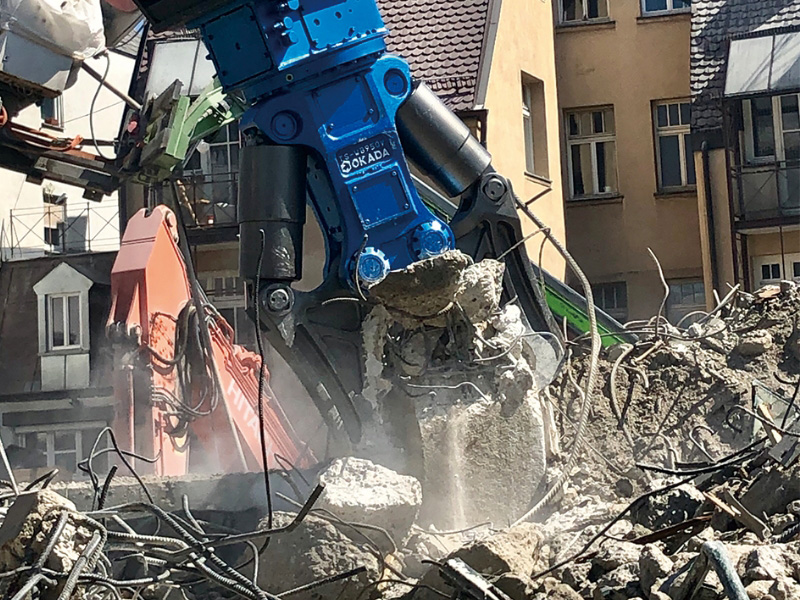

Primary demolition crusher processes reinforced concrete structures, buildings, bridges and foundations.

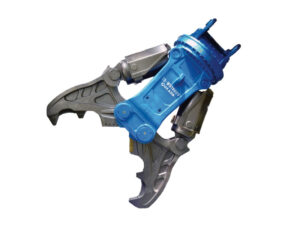

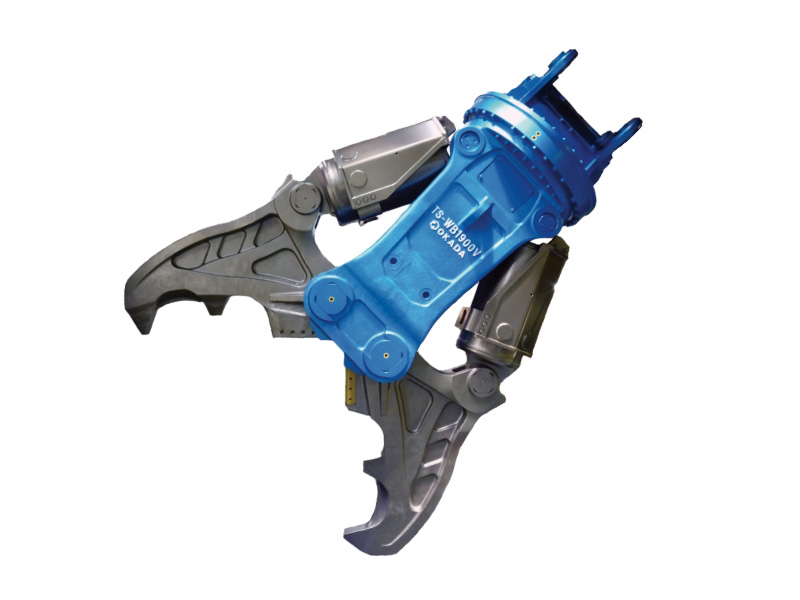

OKADA TS-WB1100V Primary crusher

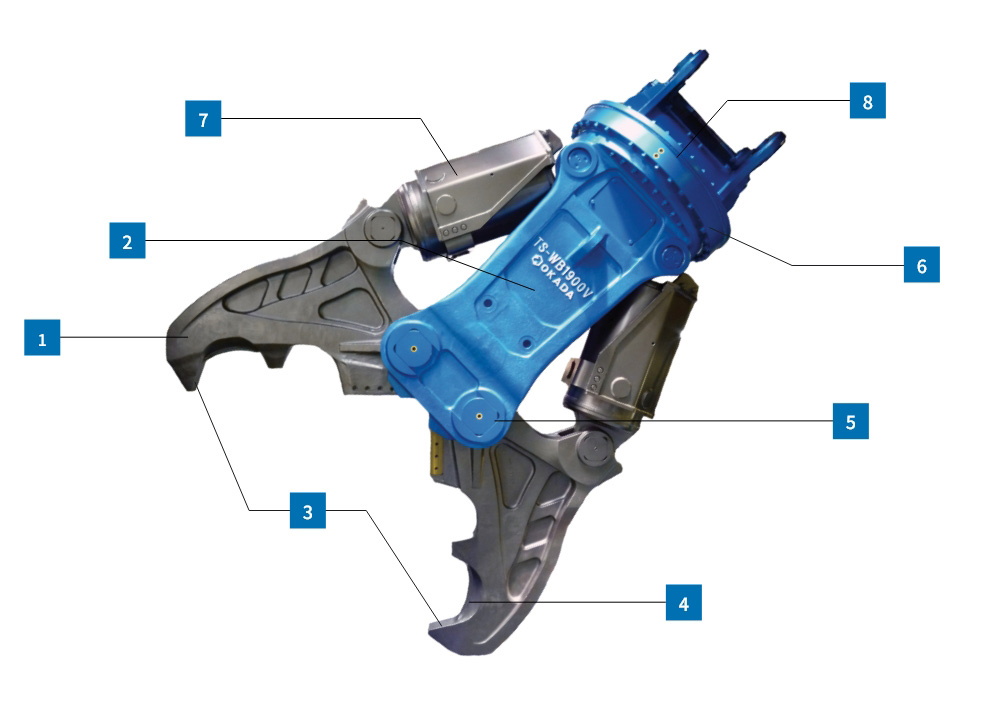

Features
- 1
- The special casting alloy used delivers a lightweight crusher with superior durability.
- 2
- Seamless steel casting one-piece body and one-piece arm.
- 3
- Wider and deeper crushing area.
- 4
- The wedge arm penetrates concrete structures.
- 5
- Robust assembly.
- 6
- A high oil flow speed valve reduces cycle time.
(Except for the TS-WB250, TS-WD350 models)
- 7
- The strong rotator features a durable bearing.
Specifications
Unit
- Rotation Type
- Operating Weight
- Overall Length
- Overall Width
- Max. Jaw Opening
- Crushing Force(Tip)
- Excavator Set Pressure
- Speed Valve
- Suitable Carrier Range
Rotation Type
Operating Weight
[kg]
Overall Length
[mm]
Overall Width
[mm]
Max. Jaw Opening
[mm]
Crushing Force(Tip)
[kN]
Excavator Set Pressure
[Mpa]
Speed Valve
Suitable Carrier Range
[Ton]
TS-WB250
Rotation Type
FR
Operating Weight
150
Overall Length
925
Overall Width
615
Max. Jaw Opening
250/0
Crushing Force(Tip)
175
Excavator Set Pressure
21
Speed Valve
-
Suitable Carrier Range
1.5 - 2.5
TS-WD350
Rotation Type
FR
Operating Weight
250
Overall Length
1070
Overall Width
680
Max. Jaw Opening
360/0
Crushing Force(Tip)
240
Excavator Set Pressure
25
Speed Valve
-
Suitable Carrier Range
2.5 - 4
TS-WD500V
Rotation Type
FR/ARTS/HR
Operating Weight
480/530/540
Overall Length
1390/1480/1480
Overall Width
835
Max. Jaw Opening
500/0
Crushing Force(Tip)
330
Excavator Set Pressure
25
Speed Valve
YES
Suitable Carrier Range
4 - 7
TS-WD720V
Rotation Type
FR/ARTS/HR
Operating Weight
780/880/890
Overall Length
1680/1880/1870
Overall Width
1215
Max. Jaw Opening
720/0
Crushing Force(Tip)
355
Excavator Set Pressure
28
Speed Valve
YES
Suitable Carrier Range
6 - 13
TS-WD950VL
Rotation Type
FR/ARTS/HR
Operating Weight
1300/1350/1350
Overall Length
2065/2175/2120
Overall Width
1365
Max. Jaw Opening
950/0
Crushing Force(Tip)
570
Excavator Set Pressure
35
Speed Valve
YES
Suitable Carrier Range
11 - 16
TS-WB950V
Rotation Type
FR/ARTS/HR
Operating Weight
1600/1670/1660
Overall Length
2140/2295/2280
Overall Width
1405
Max. Jaw Opening
950/0
Crushing Force(Tip)
605
Excavator Set Pressure
35
Speed Valve
YES
Suitable Carrier Range
12 - 25
TS-WD1100V
Rotation Type
FR/ARTS/HR
Operating Weight
2440/2550/2520
Overall Length
2465/2675/2635
Overall Width
1625
Max. Jaw Opening
1100/0
Crushing Force(Tip)
940
Excavator Set Pressure
35
Speed Valve
YES
Suitable Carrier Range
20 - 35
TS-WD1200V
Rotation Type
FR/ARTS/HR
Operating Weight
2490/2600/2580
Overall Length
2530/2720/2680
Overall Width
1730
Max. Jaw Opening
1200/0
Crushing Force(Tip)
970
Excavator Set Pressure
35
Speed Valve
YES
Suitable Carrier Range
20 - 35
TS-WD1350V
Rotation Type
FR/HR
Operating Weight
3640/3670
Overall Length
2700
Overall Width
1920
Max. Jaw Opening
1350/0
Crushing Force(Tip)
1070
Excavator Set Pressure
35
Speed Valve
YES
Suitable Carrier Range
30 - 50
TS-WD1400V
Rotation Type
FR/HR
Operating Weight
3900/3930
Overall Length
2870
Overall Width
2035
Max. Jaw Opening
1400/0
Crushing Force(Tip)
1130
Excavator Set Pressure
35
Speed Valve
YES
Suitable Carrier Range
30 - 50
TS-WD1700V-2
Rotation Type
FHR
Operating Weight
4880
Overall Length
3160
Overall Width
2335
Max. Jaw Opening
1700/0
Crushing Force(Tip)
1370
Excavator Set Pressure
35
Speed Valve
YES
Suitable Carrier Range
40 - 70
TS-WB1900V
Rotation Type
FHR
Operating Weight
7300
Overall Length
3545
Overall Width
2600
Max. Jaw Opening
1900/0
Crushing Force(Tip)
2000
Excavator Set Pressure
35
Speed Valve
YES
Suitable Carrier Range
70 - 100
TS-WD2200V
Rotation Type
FHR
Operating Weight
9800
Overall Length
3900
Overall Width
3000
Max. Jaw Opening
2200/0
Crushing Force(Tip)
2100
Excavator Set Pressure
35
Speed Valve
YES
Suitable Carrier Range
70 - 100
TS-WB2400V
Rotation Type
FHR
Operating Weight
11900
Overall Length
4050
Overall Width
3160
Max. Jaw Opening
2400/0
Crushing Force(Tip)
2150
Excavator Set Pressure
35
Speed Valve
YES
Suitable Carrier Range
150 -
(Note) The above specifications are subject to change without notice.
The above specifications assume the use of an OKADA universal pin mount.
