MULTI CRUSHERS

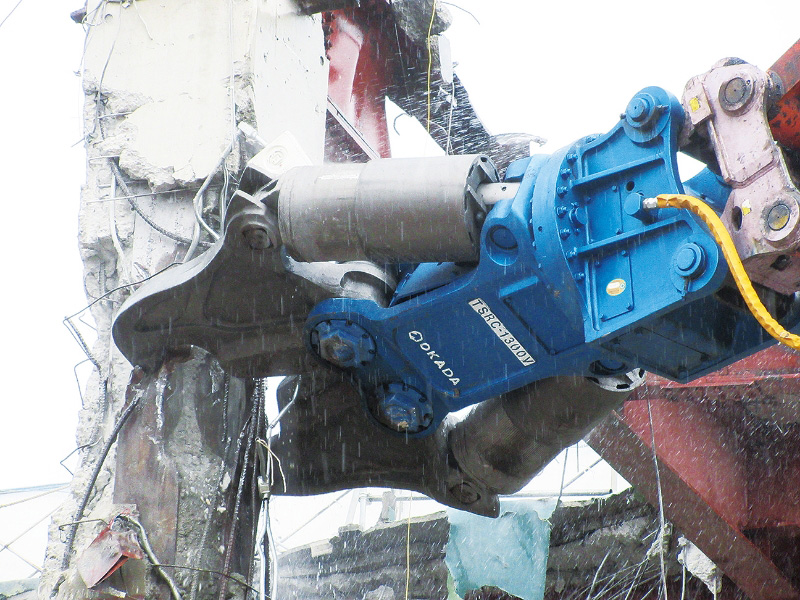

TSRC multi-crusher processes concrete and steel frame structure, concrete building, steel bridge, steel building and more.

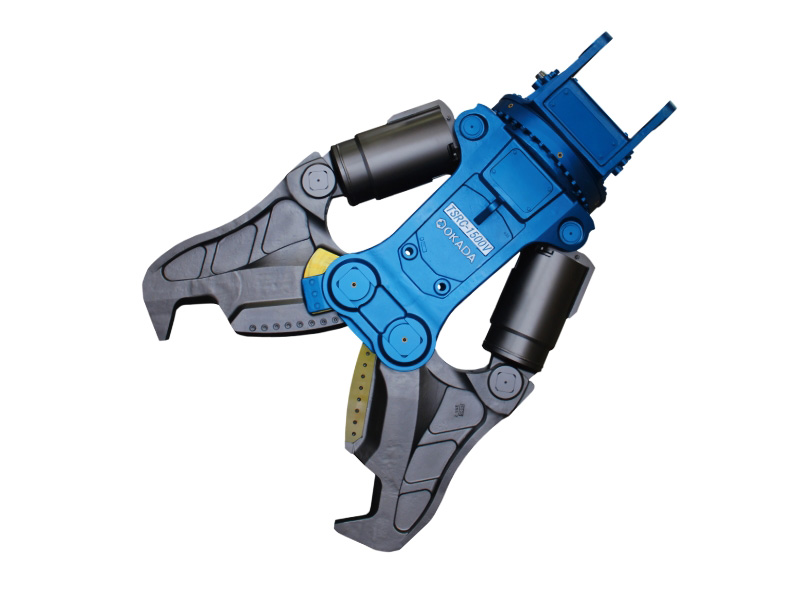

OKADA TSRC-1000V Multi Crusher
Features
- 1
- The special casting alloy used delivers a lightweight crusher with superior durability.
- 2
- The arched cutter blade provides robust cutting ability.
- 3
- Robust assembly.
- 4
- A high oil flow speed valve reduces cycle time.
- 5
- Strong rotator with a durable bearing.
Specifications
Unit
- Rotation Method
- Operating Weight
- Overall Length
- Max. Jaw Opening
- Overall Width
- Crushing Force(Tip)
- Crushing Force(Center)
- Cutter Blade Length
- Excavator Set Pressure
- Speed Valve
- Suitable Carrier Range
Rotation Method
Operating Weight
[kg]
Overall Length
[mm]
Max. Jaw Opening
[mm]
Overall Width
[mm]
Crushing Force(Tip)
[kN]
Crushing Force(Center)
[kN]
Cutter Blade Length
[mm]
Excavator Set Pressure
[Mpa]
Speed Valve
Suitable Carrier Range
[Ton]
TSRC-1000V
Rotation Method
FR/ARTS/HR
Operating Weight
2520/2620/2600
Overall Length
2445/2590/2550
Max. Jaw Opening
1000/0
Overall Width
1540
Crushing Force(Tip)
950
Crushing Force(Center)
2470
Cutter Blade Length
480
Excavator Set Pressure
35
Speed Valve
YES
Suitable Carrier Range
20 - 35
TSRC-1300V
Rotation Method
FR/HR
Operating Weight
4040/4070
Overall Length
2870
Max. Jaw Opening
1300/0
Overall Width
1900
Crushing Force(Tip)
1100
Crushing Force(Center)
2850
Cutter Blade Length
550
Excavator Set Pressure
35
Speed Valve
YES
Suitable Carrier Range
30 - 50
TSRC-1500V
Rotation Method
FHR
Operating Weight
5150
Overall Length
3190
Max. Jaw Opening
1500/0
Overall Width
2285
Crushing Force(Tip)
1400
Crushing Force(Center)
3640
Cutter Blade Length
600
Excavator Set Pressure
35
Speed Valve
YES
Suitable Carrier Range
40 - 70
TSRC-1700V
Rotation Method
FHR
Operating Weight
7610
Overall Length
3615
Max. Jaw Opening
1700/0
Overall Width
2430
Crushing Force(Tip)
1850
Crushing Force(Center)
4880
Cutter Blade Length
650
Excavator Set Pressure
35
Speed Valve
YES
Suitable Carrier Range
70 - 100
TSRC-2100V
Rotation Method
FHR
Operating Weight
11060
Overall Length
4060
Max. Jaw Opening
2100/0
Overall Width
2950
Crushing Force(Tip)
2000
Crushing Force(Center)
5460
Cutter Blade Length
750
Excavator Set Pressure
35
Speed Valve
YES
Suitable Carrier Range
150 -
(Note) The above specifications are subject to change without notice.
The above specifications assume the use of an OKADA universal pin mount.
