MULTI CRUSHERS

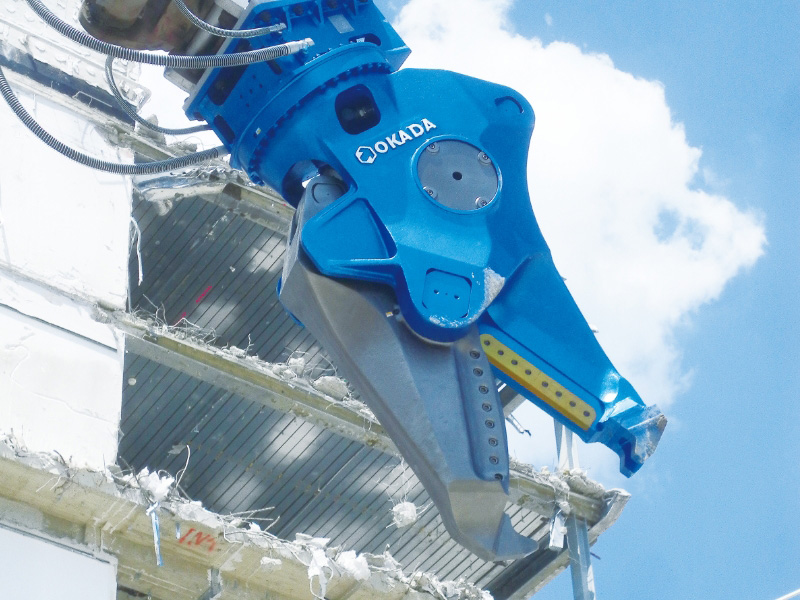

TS-S multi-crusher processes both reinforced concrete and steel structure.

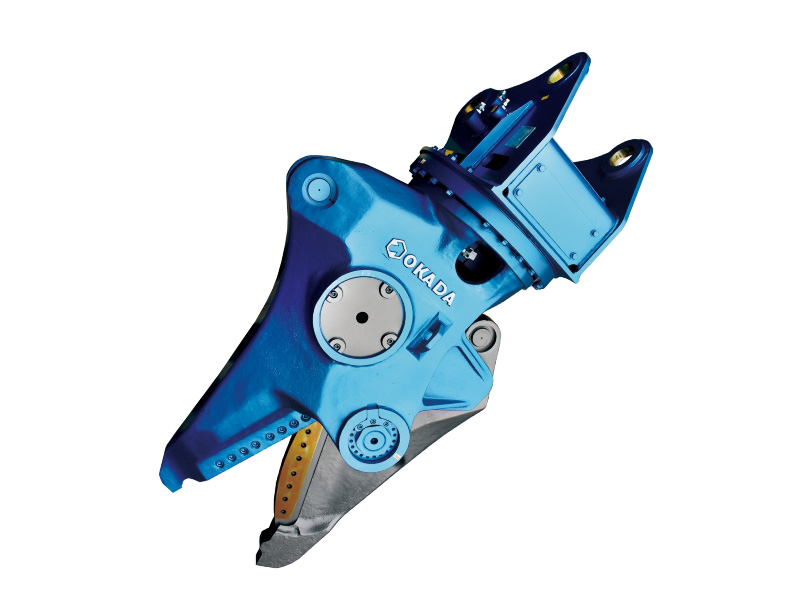

OKADA TS-S550C Multi-crusher

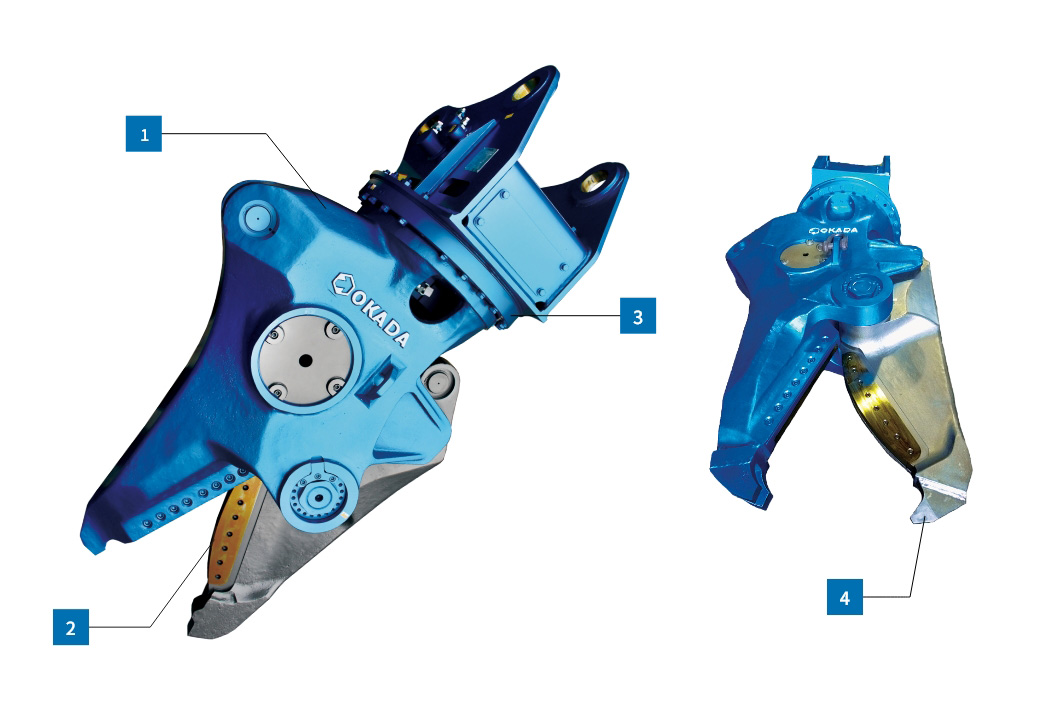

Features
- 1
- The special casting alloy used delivers a lightweight crusher with superior durability.
- 2
- Curves shape provides outstanding shearing ability.
- 3
- Strong rotator with a durable bearing.
- 4
- Teeth for processing concrete (optional).
Specifications
Unit
- Rotation Type
- Operating Weight
- Overall Length
- Overall Height
- Max. Jaw Opening
- Max. Blade Opening
- Cutter Blade Length
- Cutting Force (at inner part)
- Excavator Set Pressure
- Speed Valve
- Suitable Carrier Range
Rotation Type
Operating Weight
[kg]
Overall Length
[mm]
Overall Height
[mm]
Max. Jaw Opening
[mm]
Max. Blade Opening
[mm]
Cutter Blade Length
[mm]
Cutting Force (at inner part)
[kN]
Excavator Set Pressure
[Mpa]
Speed Valve
Suitable Carrier Range
[Ton]
TS-S250C
Rotation Type
FR/ARTS/HR
Operating Weight
280/325/330
Overall Length
1155/1255/1255
Overall Height
605
Max. Jaw Opening
325
Max. Blade Opening
220
Cutter Blade Length
220/250
Cutting Force (at inner part)
405
Excavator Set Pressure
25
Speed Valve
-
Suitable Carrier Range
3 - 5
TS-S320C
Rotation Type
FR/ARTS/HR
Operating Weight
755/775/775
Overall Length
1630/1635/1630
Overall Height
875
Max. Jaw Opening
475
Max. Blade Opening
340
Cutter Blade Length
320/380
Cutting Force (at inner part)
745
Excavator Set Pressure
28
Speed Valve
-
Suitable Carrier Range
6 - 13
TS-S430C
Rotation Type
FR/ARTS/HR
Operating Weight
1395/1475/1455
Overall Length
2055/2195/2195
Overall Height
1115
Max. Jaw Opening
565
Max. Blade Opening
400
Cutter Blade Length
420/500
Cutting Force (at inner part)
1080
Excavator Set Pressure
30
Speed Valve
-
Suitable Carrier Range
10 - 25
TS-S550C
Rotation Type
FR/ARTS/HR
Operating Weight
2420/2520/2500
Overall Length
2445/2590/2550
Overall Height
1400
Max. Jaw Opening
690
Max. Blade Opening
515
Cutter Blade Length
550/600
Cutting Force (at inner part)
1910
Excavator Set Pressure
35
Speed Valve
-
Suitable Carrier Range
20 - 35
TS-S660C
Rotation Type
FHR
Operating Weight
3755
Overall Length
2835
Overall Height
1618
Max. Jaw Opening
815
Max. Blade Opening
630
Cutter Blade Length
660/720
Cutting Force (at inner part)
2310
Excavator Set Pressure
35
Speed Valve
-
Suitable Carrier Range
30 - 50
(Note) The above specifications are subject to change without notice.
The above specifications assume the use of an OKADA universal pin mount.
