- TS-WB600CV
- TS-WB700CV
- TS-WB800CV
- TS-WB900CV
- TS-WB1000CV
- TS-WB1150CV
CUTTERS

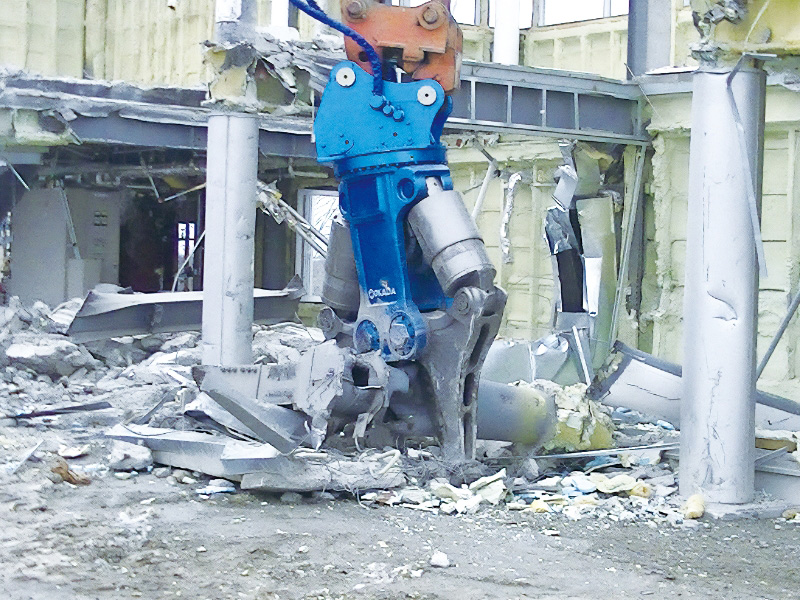

Processes steel frame structure.

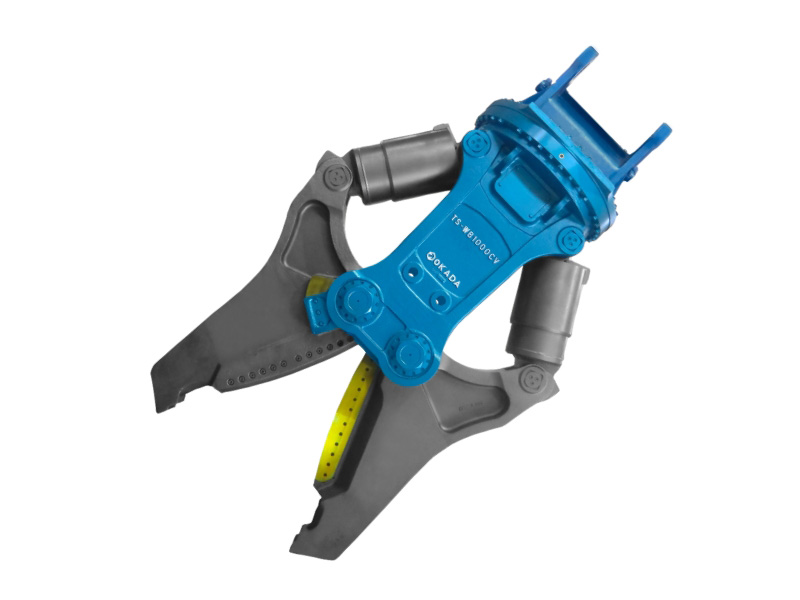

OKADA TS-WB700CV Demolition Shear

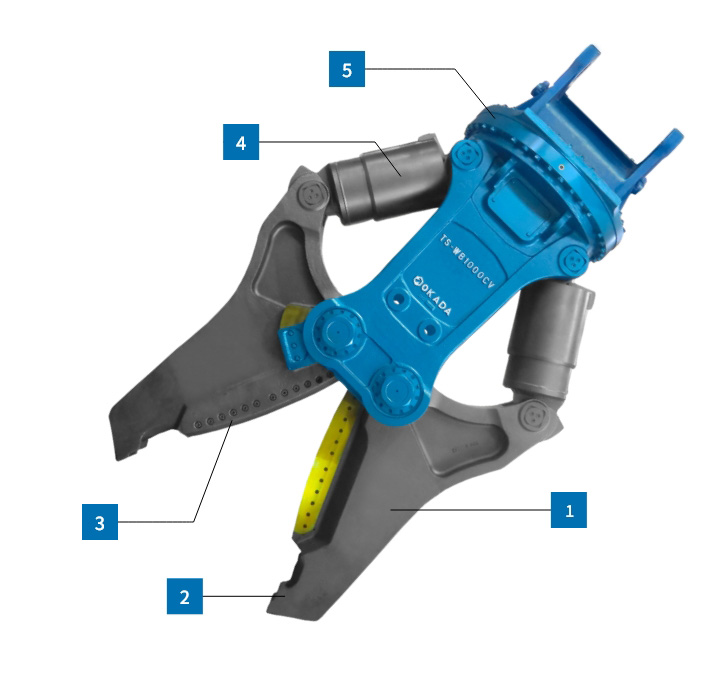

Features
- 1
- The special casting alloy used delivers a lightweight crusher with superior durability.
- 2

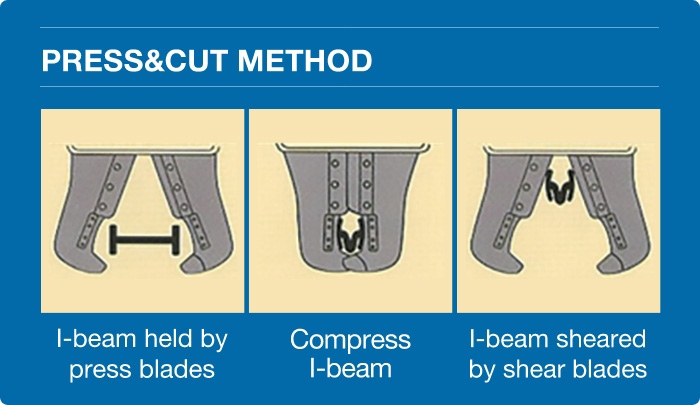

- Adopts the press & cut method.
- 3
- The longest cutter blade on its class.
- 4
- A high oil flow speed valve reduces cycle time.
- 5
- The robust rotator features a durable bearing.
More Information
Specifications
Unit
- Rotation Type
- Operating Weight
- Overall Length
- Max. Jaw Opening
- Overall Width
- Cutter Blade Length
- Cutting Force(Center)
- Excavator Set Pressure
- Speed Valve
- Suitable Carrier Range
Rotation Type
Operating Weight
[kg]
Overall Length
[mm]
Max. Jaw Opening
[mm]
Overall Width
[mm]
Cutter Blade Length
[mm]
Cutting Force(Center)
[kN]
Excavator Set Pressure
[Mpa]
Speed Valve
Suitable Carrier Range
[Ton]
TS-WB600CV
Rotation Type
FR/ARTS/HR
Operating Weight
2620/2720/2700
Overall Length
2530/2680/2640
Max. Jaw Opening
710
Overall Width
1680
Cutter Blade Length
600
Cutting Force(Center)
2300
Excavator Set Pressure
35
Speed Valve
YES
Suitable Carrier Range
20 - 35
TS-WB700CV
Rotation Type
FR/HR/FHR
Operating Weight
3980/4010/4020
Overall Length
3050
Max. Jaw Opening
930
Overall Width
1650
Cutter Blade Length
700
Cutting Force(Center)
2710
Excavator Set Pressure
35
Speed Valve
YES
Suitable Carrier Range
30 - 50
TS-WB800CV
Rotation Type
FHR
Operating Weight
5260
Overall Length
3340
Max. Jaw Opening
1050
Overall Width
1950
Cutter Blade Length
800
Cutting Force(Center)
3000
Excavator Set Pressure
35
Speed Valve
YES
Suitable Carrier Range
40 - 70
TS-WB900CV
Rotation Type
FHR
Operating Weight
7400
Overall Length
3880
Max. Jaw Opening
1190
Overall Width
1940
Cutter Blade Length
900
Cutting Force(Center)
3460
Excavator Set Pressure
35
Speed Valve
YES
Suitable Carrier Range
60 - 100
TS-WB1000CV
Rotation Type
FHR
Operating Weight
9340
Overall Length
4170
Max. Jaw Opening
1370
Overall Width
2400
Cutter Blade Length
1000
Cutting Force(Center)
3675
Excavator Set Pressure
35
Speed Valve
YES
Suitable Carrier Range
100 - 200
TS-WB1150CV
Rotation Type
FHR
Operating Weight
11000
Overall Length
4460
Max. Jaw Opening
1600
Overall Width
2360
Cutter Blade Length
1150
Cutting Force(Center)
3650
Excavator Set Pressure
35
Speed Valve
YES
Suitable Carrier Range
150 -
(Note) The above specifications are subject to change without notice.
The above specifications assume the use of an OKADA universal pin mount.
