- TS-W450XCV
- TS-W600XCV
- TS-W650XCV
CROSS CUTTERS

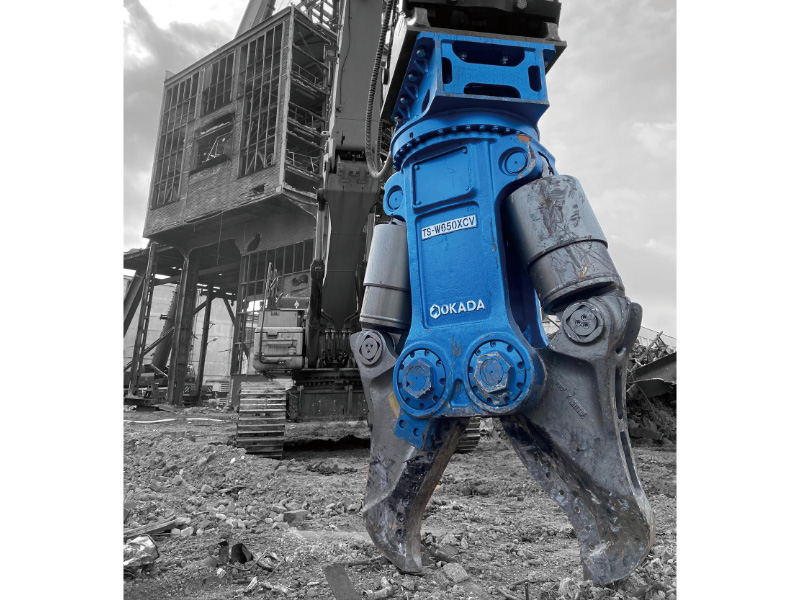

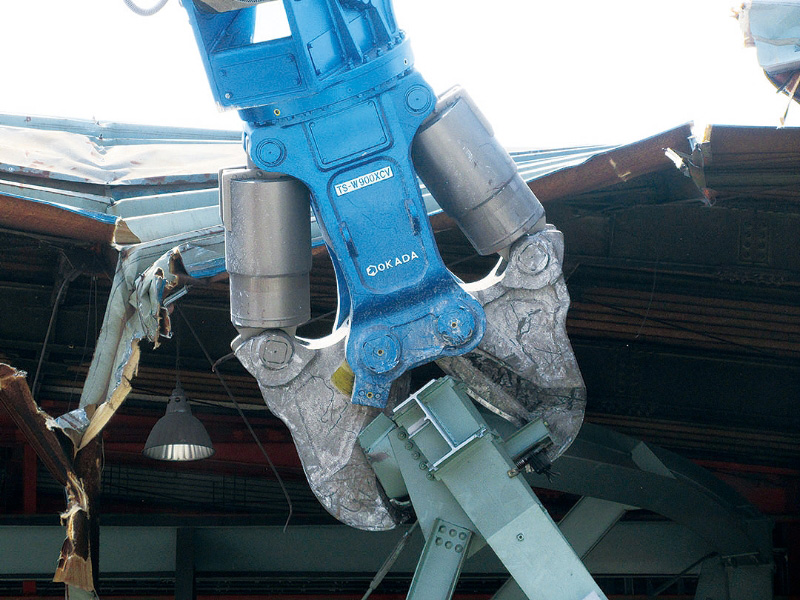

TS-W cross cutter processes steel frame structure.

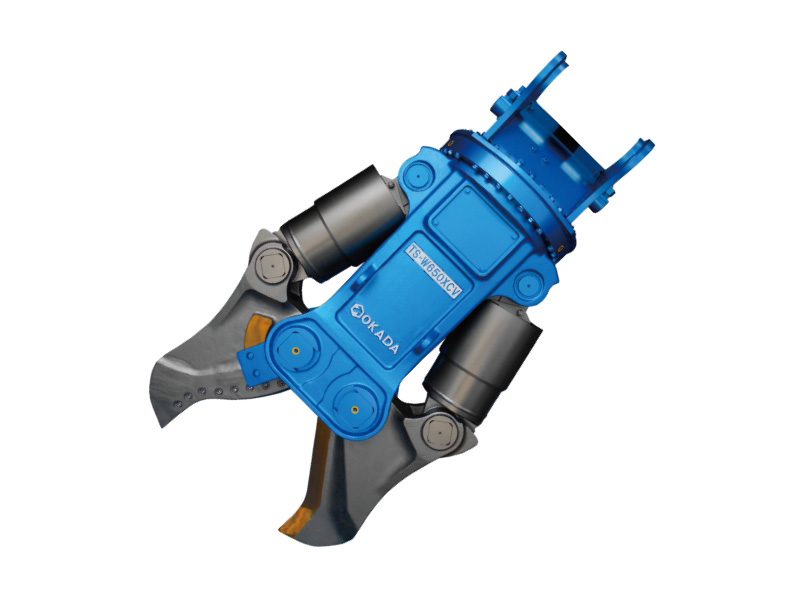

OKADA TS-W900XCV Demolition shear_Cross cutter

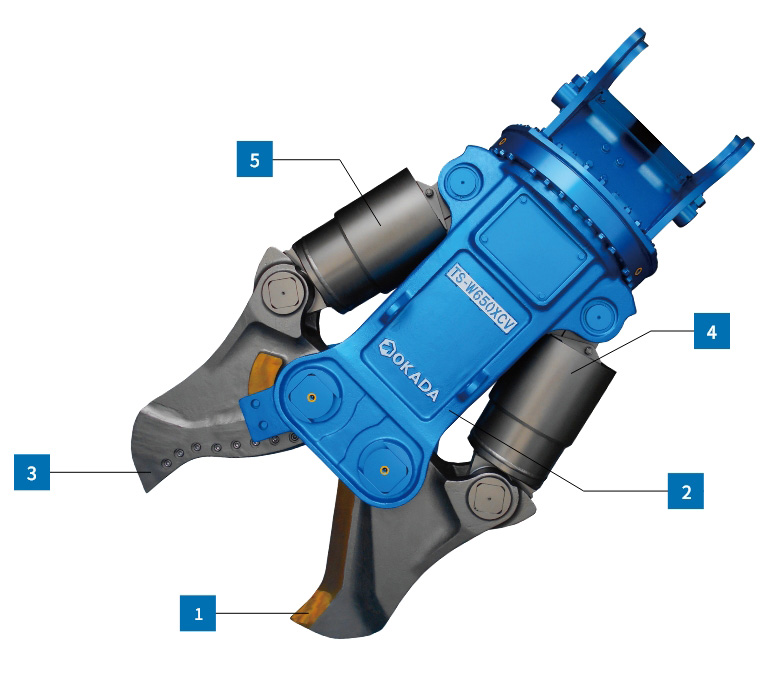

Features
- 1

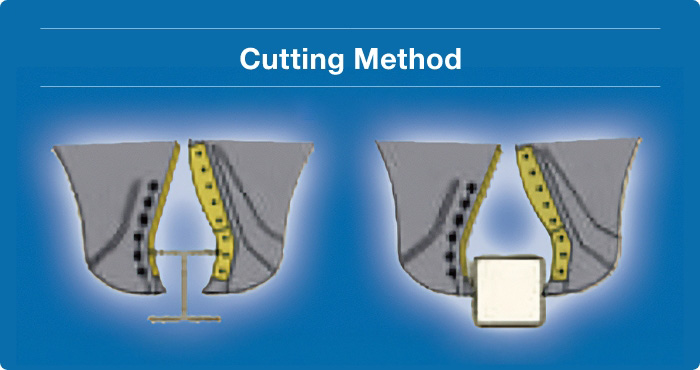

- The crossed cutter blades can punch a hole in the object, making it possible to cut objects bigger than the cutter blade length.
- 2
- The special casting alloy used delivers a lightweight crusher with superior durability.
- 3
- Able to cut loose objects on the ground.
- 4
- A high oil flow speed valve reduces cycle time.
- 5
- The robust rotator features a durable bearing.
More Information
Specifications
Unit
- Rotation Type
- Operating Weight
- Overall Length
- Overall Width
- Max. Jaw Opening
- Cutter Blade Length
- Cutting Force(Center)
- Cutting Force(Tip)
- Excavator Set Pressure
- Speed Valve
- Suitable Carrier Range
Rotation Type
Operating Weight
[kg]
Overall Length
[mm]
Overall Width
[mm]
Max. Jaw Opening
[mm]
Cutter Blade Length
[mm]
Cutting Force(Center)
[kN]
Cutting Force(Tip)
[kN]
Excavator Set Pressure
[Mpa]
Speed Valve
Suitable Carrier Range
[Ton]
TS-W450XCV
Rotation Type
FR/ARTS/HR
Operating Weight
750/840/850
Overall Length
1500/1700/1690
Overall Width
910
Max. Jaw Opening
445
Cutter Blade Length
420
Cutting Force(Center)
860
Cutting Force(Tip)
430
Excavator Set Pressure
28
Speed Valve
YES
Suitable Carrier Range
6 - 13
TS-W600XCV
Rotation Type
FR/ARTS/HR
Operating Weight
1430/1480/1480
Overall Length
2010/2120/2065
Overall Width
1160
Max. Jaw Opening
590
Cutter Blade Length
570
Cutting Force(Center)
1275
Cutting Force(Tip)
590
Excavator Set Pressure
35
Speed Valve
YES
Suitable Carrier Range
11 - 16
TS-W650XCV
Rotation Type
FR/ARTS/HR
Operating Weight
2420/2530/2510
Overall Length
2310/2520/2480
Overall Width
1350
Max. Jaw Opening
680
Cutter Blade Length
640
Cutting Force(Center)
1500
Cutting Force(Tip)
800
Excavator Set Pressure
35
Speed Valve
YES
Suitable Carrier Range
20 - 25
(Note) The above specifications are subject to change without notice.
The above specifications assume the use of an OKADA universal pin mount.
