PULVERIZERS

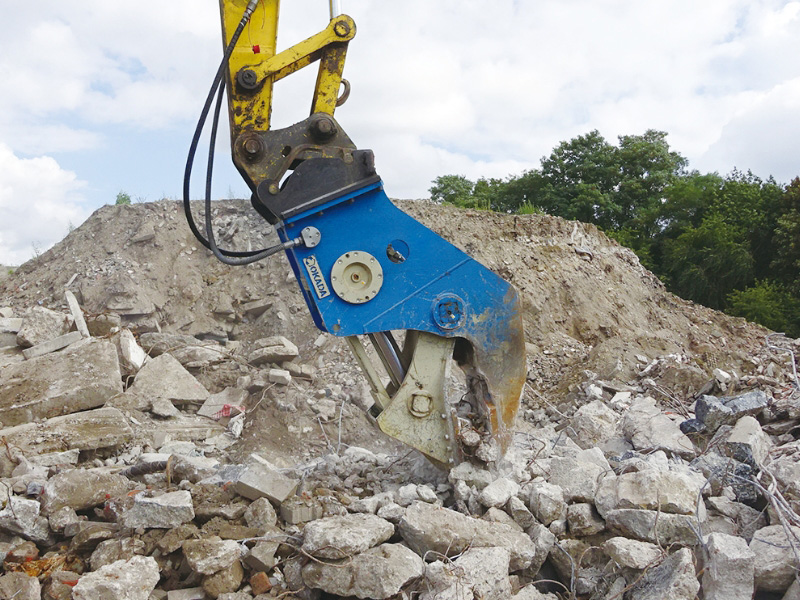

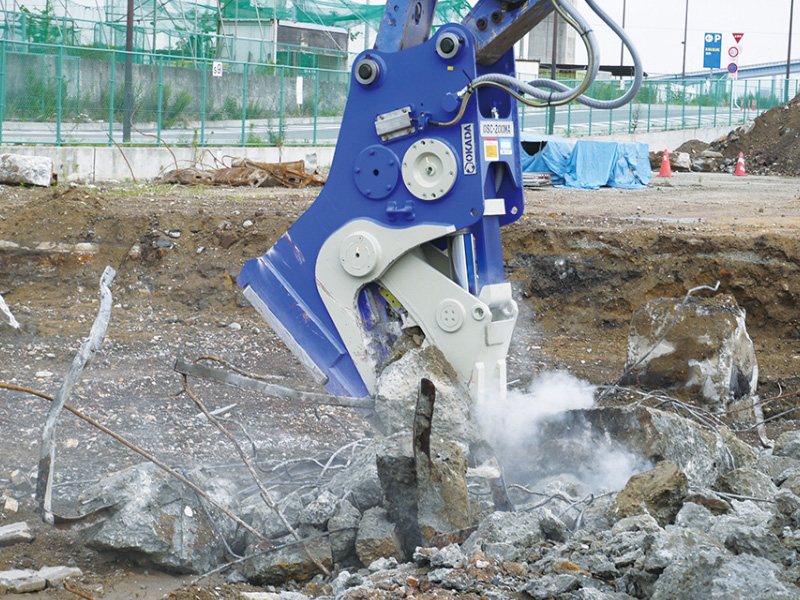

Pulverizers were developed as a result of a growing need to reduce disposal volume and recycle concrete waste created during concrete building demolition.
The flat, wide jaw design and an internal speed valve make it possible to grab and crush large sections of concrete quickly.

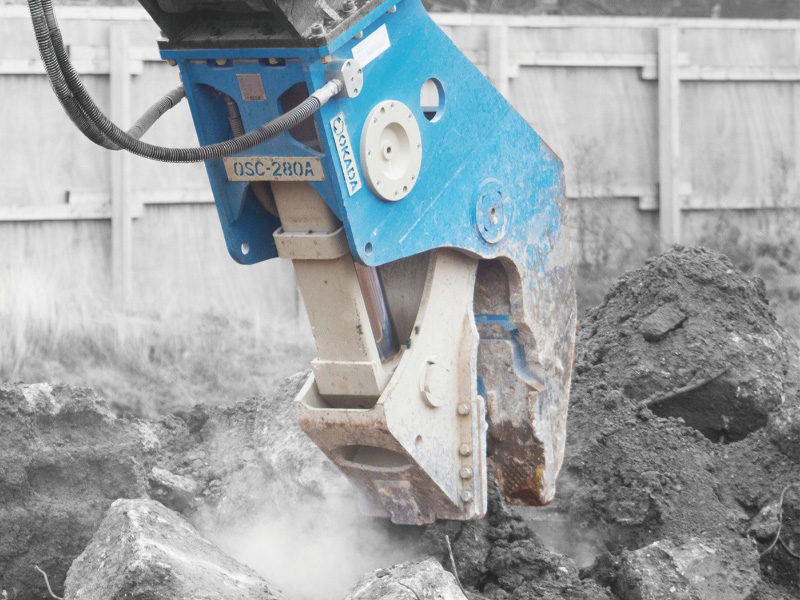

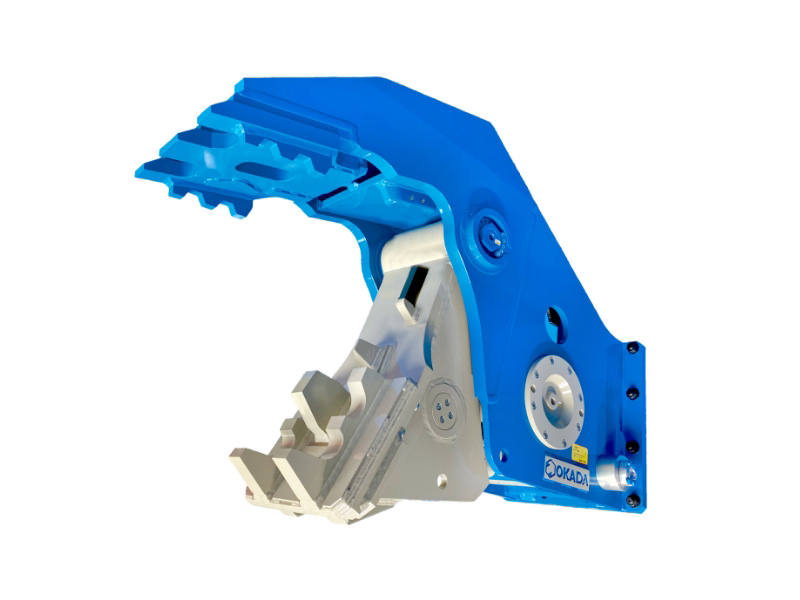

OKADA OSC-200B Pulverizer

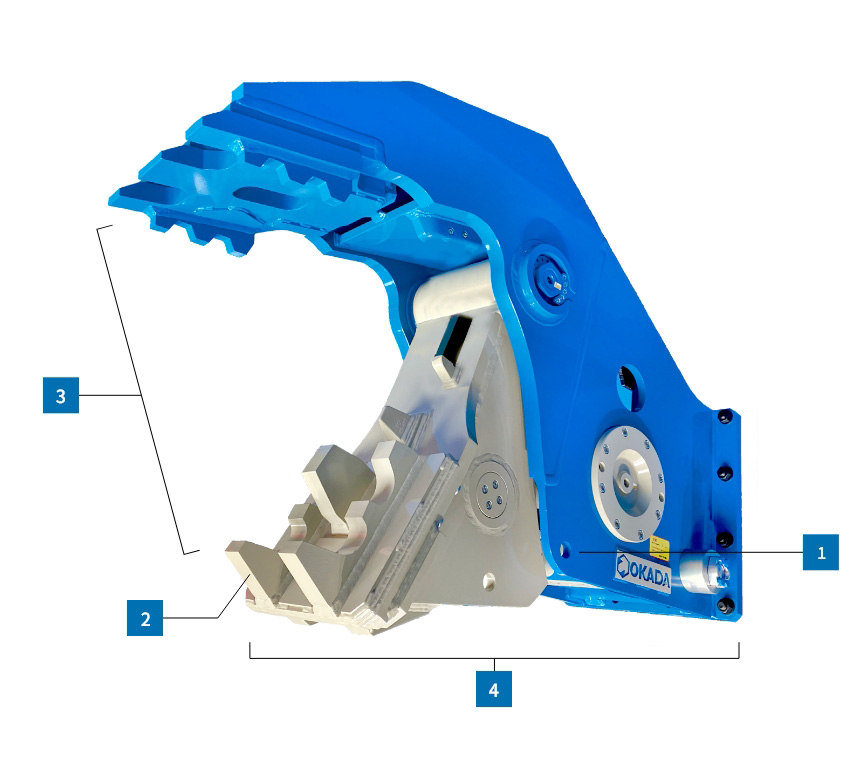

Features
- 1
- The high-flow speed valve mounted directly on the cylinder reduces operating time.
- 2
- Durable HARDOX wedges provide high crushing performance.
- 3
- Large jaw opening and crushing area ensure unmatched productivity.
- 4
- Short body:
Easy to operate.
More Information
Electromagnet Type
The electromagnet is powered by the 24V battery of the carrier machine.No additional generator is required.
Specifications
Unit
- Operating Weight
- Overall Length
- Overall Height
- Max. Jaw Opening
- Cutter Blade Length
- Crushing Force(Center)
- Excavator Set Pressure
- Speed Valve
- Suitable Carrier Range
Operating Weight
[kg]
Overall Length
[mm]
Overall Height
[mm]
Max. Jaw Opening
[mm]
Cutter Blade Length
[mm]
Crushing Force(Center)
[kN]
Excavator Set Pressure
[Mpa]
Speed Valve
Suitable Carrier Range
[Ton]
OSC-35BV
Operating Weight
275
Overall Length
1230
Overall Height
715
Max. Jaw Opening
425
Cutter Blade Length
90
Crushing Force(Center)
315
Excavator Set Pressure
28
Speed Valve
YES
Suitable Carrier Range
3 - 5
OSC-70BV
Operating Weight
660
Overall Length
1585
Overall Height
955
Max. Jaw Opening
600
Cutter Blade Length
100
Crushing Force(Center)
450
Excavator Set Pressure
30
Speed Valve
YES
Suitable Carrier Range
6 - 9
OSC-135BV
Operating Weight
1115
Overall Length
1995
Overall Height
1175
Max. Jaw Opening
730
Cutter Blade Length
150
Crushing Force(Center)
600
Excavator Set Pressure
30
Speed Valve
YES
Suitable Carrier Range
10 - 16
OSC-200AV
Operating Weight
1750
Overall Length
2190
Overall Height
1410
Max. Jaw Opening
860
Cutter Blade Length
150
Crushing Force(Center)
880
Excavator Set Pressure
35
Speed Valve
YES
Suitable Carrier Range
18 - 30
OSC-280AV
Operating Weight
1940
Overall Length
1900
Overall Height
1365
Max. Jaw Opening
885
Cutter Blade Length
150
Crushing Force(Center)
880
Excavator Set Pressure
35
Speed Valve
YES
Suitable Carrier Range
18 - 30
OSC-360AV
Operating Weight
3160
Overall Length
2700
Overall Height
1760
Max. Jaw Opening
1105
Cutter Blade Length
180
Crushing Force(Center)
1000
Excavator Set Pressure
35
Speed Valve
YES
Suitable Carrier Range
30 - 50
OSC-500AV
Operating Weight
4785
Overall Length
3110
Overall Height
2135
Max. Jaw Opening
1465
Cutter Blade Length
215
Crushing Force(Center)
1115
Excavator Set Pressure
35
Speed Valve
YES
Suitable Carrier Range
40 - 100
OSC-650AV
Operating Weight
5630
Overall Length
3625
Overall Height
2210
Max. Jaw Opening
1500
Cutter Blade Length
215
Crushing Force(Center)
1400
Excavator Set Pressure
35
Speed Valve
YES
Suitable Carrier Range
50 - 100
(Note) The above specifications are subject to change without notice.
The above specifications assume the use of an OKADA universal pin mount.
electromagnet type
Unit
- Operating Weight
- Overall Length
- Overall Height
- Max. Jaw Opening
- Cutter Blade Length
- Crushing Force(Center)
- Excavator Set Pressure
- Speed Valve
- Suitable Carrier Range
- Magnet Size
- Voltage For Magnet
Operating Weight
[kg]
Overall Length
[mm]
Overall Height
[mm]
Max. Jaw Opening
[mm]
Cutter Blade Length
[mm]
Crushing Force(Center)
[kN]
Excavator Set Pressure
[Mpa]
Speed Valve
Suitable Carrier Range
[Ton]
Magnet Size
[mm]
Voltage For Magnet
[V]
OSC-135MBV
Operating Weight
1375
Overall Length
1840
Overall Height
1355
Max. Jaw Opening
730
Cutter Blade Length
150
Crushing Force(Center)
600
Excavator Set Pressure
30
Speed Valve
YES
Suitable Carrier Range
10 - 16
Magnet Size
600 x 475
Voltage For Magnet
24
OSC-200MBV2
Operating Weight
2155
Overall Length
2145
Overall Height
1575
Max. Jaw Opening
870
Cutter Blade Length
150
Crushing Force(Center)
880
Excavator Set Pressure
35
Speed Valve
YES
Suitable Carrier Range
18 - 30
Magnet Size
715 x 555
Voltage For Magnet
24
OSC-200HMBV2
Operating Weight
2175
Overall Length
2145
Overall Height
1575
Max. Jaw Opening
870
Cutter Blade Length
150
Crushing Force(Center)
880
Excavator Set Pressure
35
Speed Valve
YES
Suitable Carrier Range
18 - 30
Magnet Size
715 x 555
Voltage For Magnet
24
(Note) The above specificatons are subject to change without notce.
The above specificatons assume the use of an OKADA universal pin mount.
