- ORC-280AV
- ORC-380AV
ROTATING PULVERIZERS

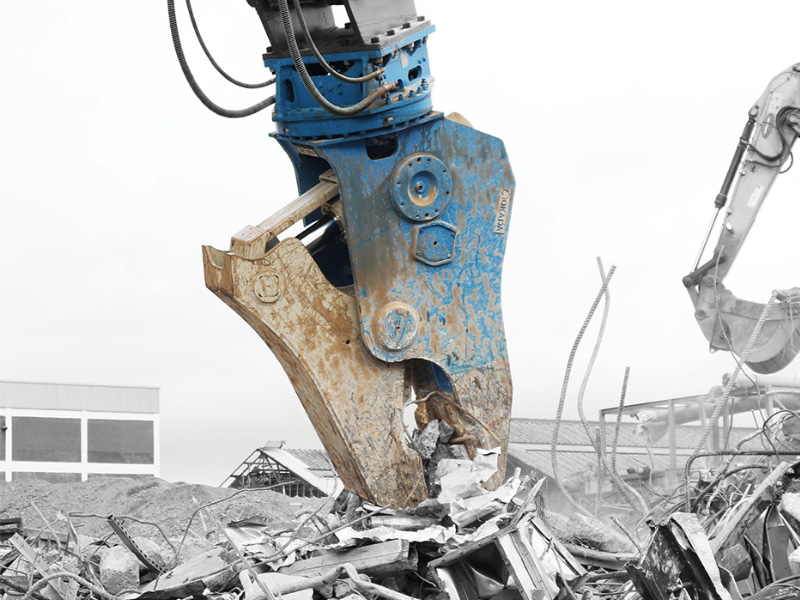

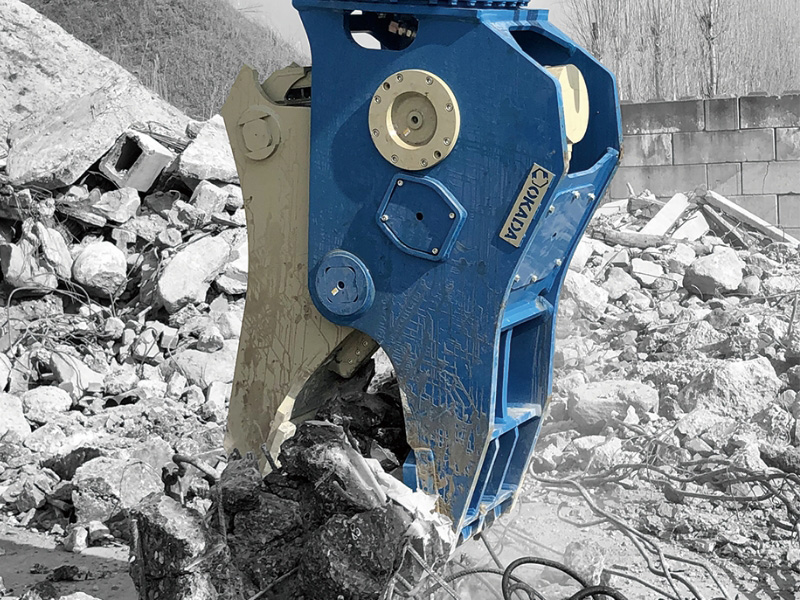

High-speed pulverizer to process concrete walls, bricks and concrete lumps into small pieces.
The right attachment to separate rebar for recycling.

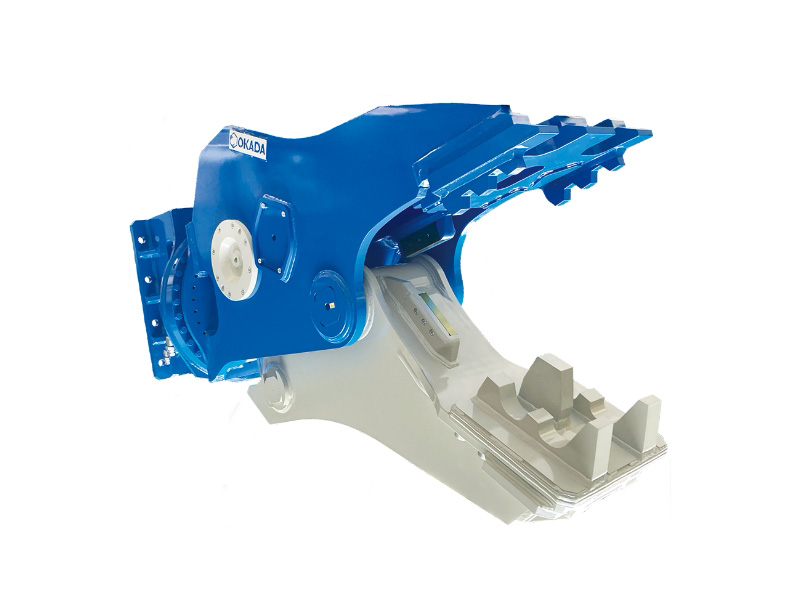

OKADA ORC-280AV Rotating pulverizer

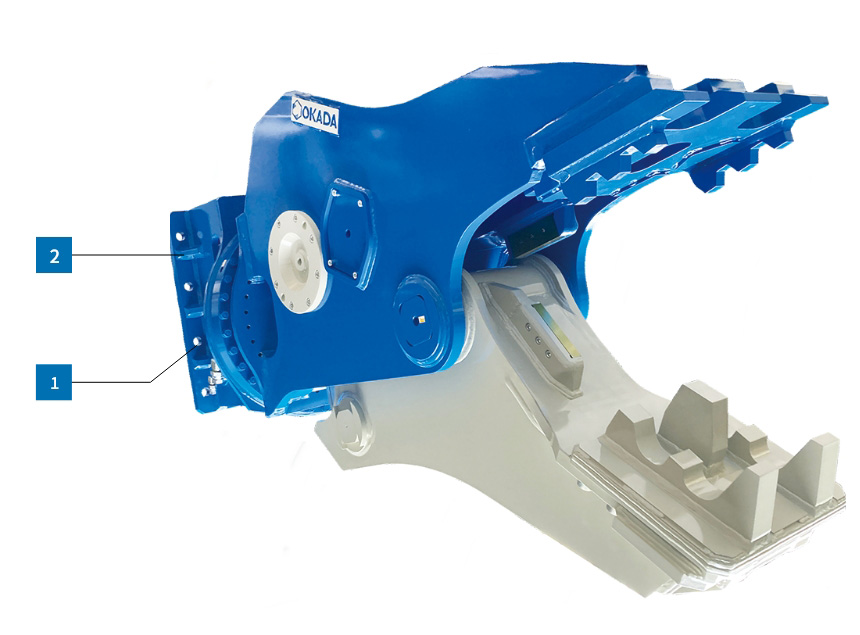

Features
- 1
- Strong rotator with durable bearing.
- 2
- The high-flow speed valve mounted directly on the cylinder reduces operating time.
More Information
Specifications
Unit
- Rotation Type
- Operating Weight
- Overall Length
- Overall Height
- Max. Jaw Opening
- Cutter Blade Length
- Crushing Force(Center)
- Excavator Set Pressure
- Speed Valve
- Suitable Carrier Range
Rotation Type
Operating Weight
[kg]
Overall Length
[mm]
Overall Height
[mm]
Max. Jaw Opening
[mm]
Cutter Blade Length
[mm]
Crushing Force(Center)
[kN]
Excavator Set Pressure
[Mpa]
Speed Valve
Suitable Carrier Range
[Ton]
ORC-280AV
Rotation Type
HR
Operating Weight
2455
Overall Length
2255
Overall Height
1230
Max. Jaw Opening
835
Cutter Blade Length
180
Crushing Force(Center)
750
Excavator Set Pressure
35
Speed Valve
YES
Suitable Carrier Range
22 - 38
ORC-380AV
Rotation Type
HR
Operating Weight
4230
Overall Length
2795
Overall Height
1495
Max. Jaw Opening
1000
Cutter Blade Length
215
Crushing Force(Center)
1110
Excavator Set Pressure
35
Speed Valve
YES
Suitable Carrier Range
35 - 50
(Note) The above specifications are subject to change without notice.
The above specifications assume the use of an OKADA flat mount bracket.
