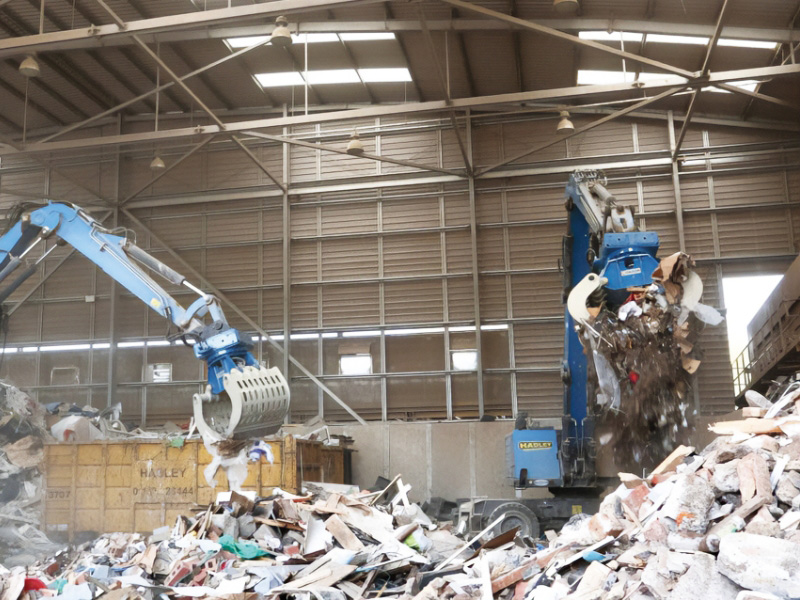

DEMOLITON & SORTING GRAPPLES
Designed to be extremely sturdy to perform all demoliton & recycling tasks while keeping maintenance costs low.
The grapples incorporate several hydraulic components used in the OKADA crushers and are based on decades of OKADA engineering experience.

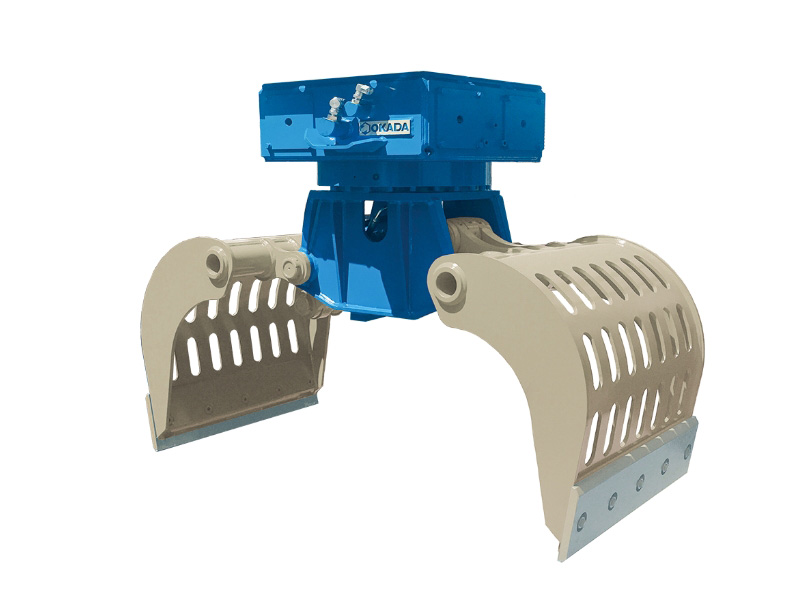

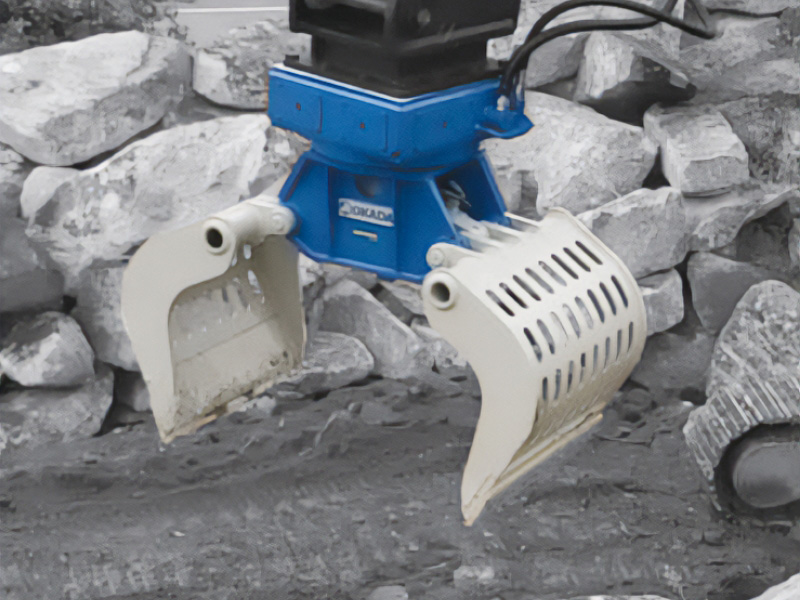

OKADA OD-60R Demolition & Sorting grapple

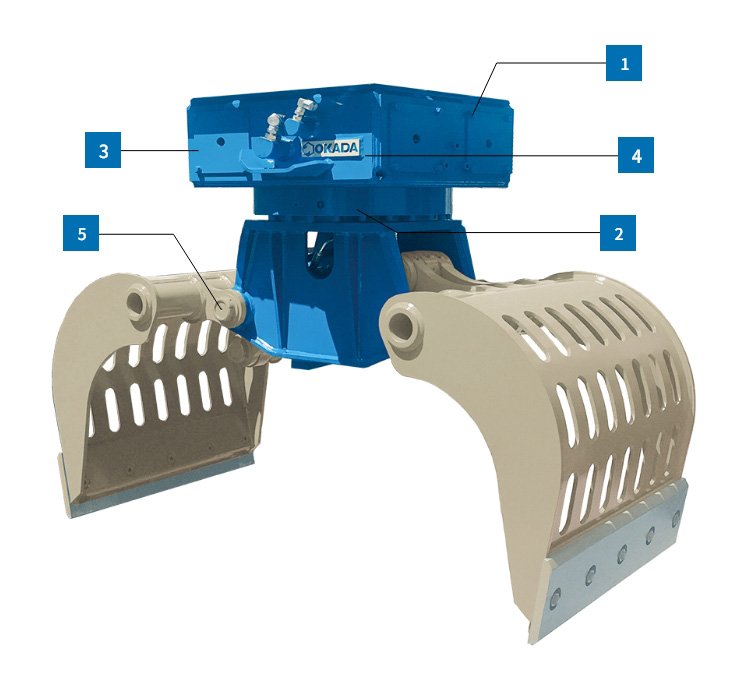

Features
- 1
- High power Parker® rotation motors
provide an optimal distribution of forces on the swing bearing and generate a high torque suited for heavy applications in any position.
- 2
- Heavy duty swing bearing
- 3
- Rotation control safety valve
gives adequate brake force and maximizes the safety standards by protecting the rotation mechanism when grabbing heavy loads.
- 4
- Center swivel valve
is an oil valve that is crucial for a smooth rotation of the grapple.
Okada uses a highly reliable sealing design which is also used in airplane systems.
- 5
- Dust seals
in the main pin and bushing area keep dust and water outside ensuring a lasting, trouble-free operation.
Specifications
Unit
- Operating weight
- Overall height - open position
- Max. shelves opening
- Shell width
- Operating pressure for cylinder
- Max. oil flow for cylinder
- Operating pressure for Rotation
- Max. oil flow for Rotation
- Grabbing force
- Rotation motor
- Base machine Weight
Operating weight
[kg]
Overall height - open position
[mm]
Max. shelves opening
[mm]
Shell width
[mm]
Operating pressure for cylinder
[Mpa]
Max. oil flow for cylinder
[L/min]
Operating pressure for Rotation
[Mpa]
Max. oil flow for Rotation
[L/min]
Grabbing force
[kN]
Rotation motor
Base machine Weight
[Ton]
OD-60R
Operating weight
480
Overall height - open position
1235
Max. shelves opening
1550
Shell width
700
Operating pressure for cylinder
31.4
Max. oil flow for cylinder
40 - 60
Operating pressure for Rotation
16
Max. oil flow for Rotation
15
Grabbing force
24
Rotation motor
1
Base machine Weight
6 - 12
OD-120R
Operating weight
850
Overall height - open position
1375
Max. shelves opening
1820
Shell width
800
Operating pressure for cylinder
35
Max. oil flow for cylinder
50 - 70
Operating pressure for Rotation
16
Max. oil flow for Rotation
30
Grabbing force
35
Rotation motor
2
Base machine Weight
12 - 18
OD-200R
Operating weight
1350
Overall height - open position
1635
Max. shelves opening
2110
Shell width
900
Operating pressure for cylinder
35
Max. oil flow for cylinder
100 - 120
Operating pressure for Rotation
16
Max. oil flow for Rotation
30
Grabbing force
56
Rotation motor
2
Base machine Weight
18 - 28
(Note) The above specifications are subject to change without notice.
The above specifications assume the use of an OKADA flat mount bracket.
