- ASG-35R/RDF
- ASG-60R/RDF
- ASG-130R/RDF
- ASG-210R/RDF
DEMOLITON & SORTING GRAPPLES

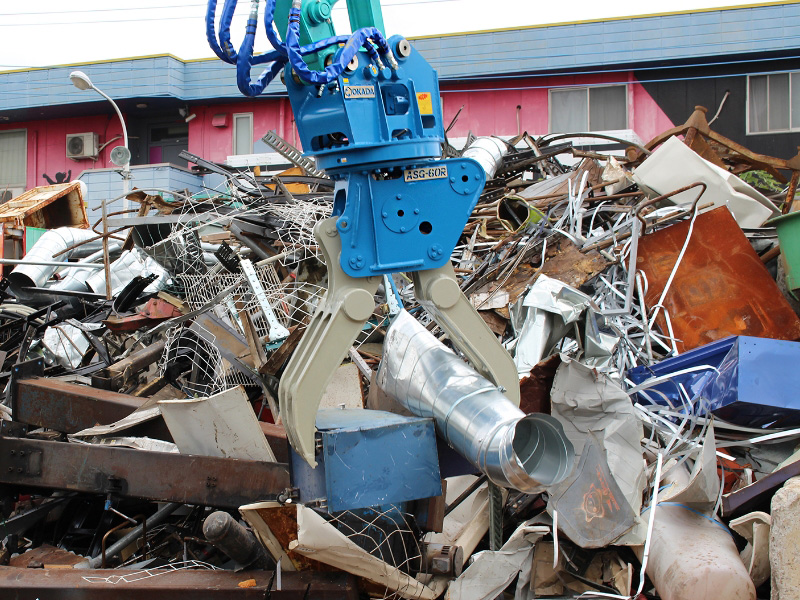

ASG Grapples can be used in a variety of applications including demolition of wooden structures, scrap handling, loading, sorting and others.

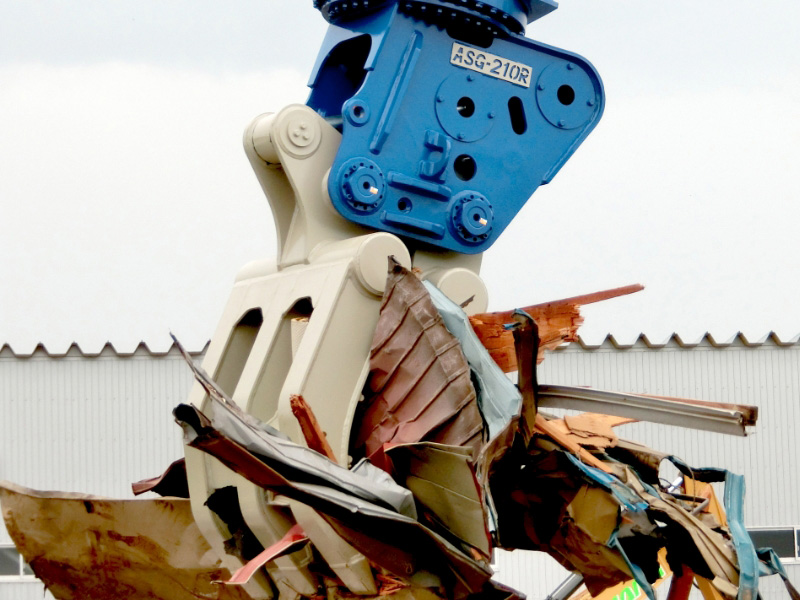

OKADA ASG-210R Grapple

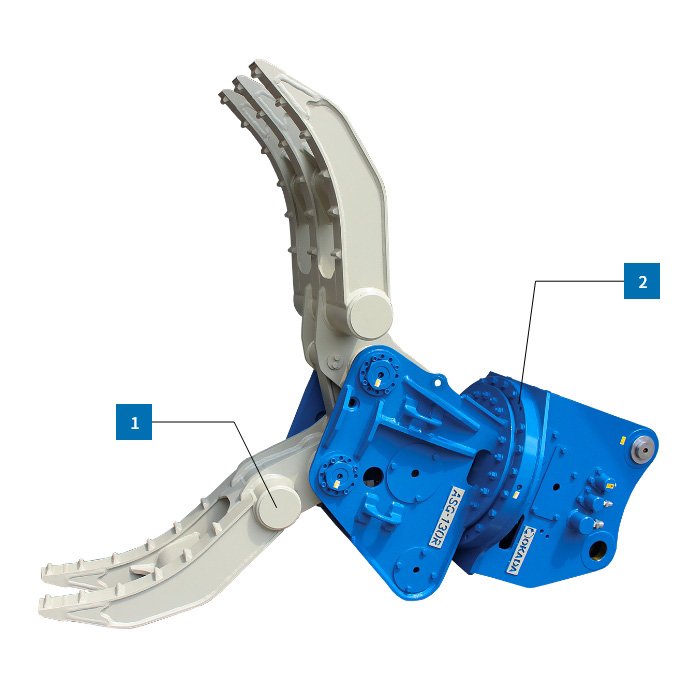

Features
- 1
- A powerful hydraulic motor allows easy rotation long, heavy objects.
- 2
- The robust rotator features a durable bearing.
Specifications
Unit
- Operating Weight
- Overall Length
- Max. Claw Opening
- Claw Width (3/2)
- Claw Length
- Excavator Set Pressure
- Suitable Carrier Range
Operating Weight
[kg]
Overall Length
[mm]
Max. Claw Opening
[mm]
Claw Width (3/2)
[mm]
Claw Length
[mm]
Excavator Set Pressure
[Mpa]
Suitable Carrier Range
[Ton]
ASG-35R/RDF
Operating Weight
230/235
Overall Length
1455
Max. Claw Opening
1145
Claw Width (3/2)
295/155
Claw Length
650
Excavator Set Pressure
25
Suitable Carrier Range
3 - 5
ASG-60R/RDF
Operating Weight
530/555
Overall Length
1915/1930
Max. Claw Opening
1660
Claw Width (3/2)
480/270
Claw Length
865
Excavator Set Pressure
28/25
Suitable Carrier Range
6 - 9
ASG-130R/RDF
Operating Weight
950/990
Overall Length
2195/2255
Max. Claw Opening
1830
Claw Width (3/2)
600/340
Claw Length
955
Excavator Set Pressure
28
Suitable Carrier Range
10 - 16
ASG-210R/RDF
Operating Weight
1595/1675
Overall Length
2645/2690
Max. Claw Opening
2335
Claw Width (3/2)
800/460
Claw Length
1200
Excavator Set Pressure
28/25
Suitable Carrier Range
18 - 25
(Note) The above specifications are subject to change without notice. The above specifications assume the use of an OKADA universal pin mount.
Solenoid valve is installed on ASG-30RD and ASG-130RDF. (It is used in breaker piping. )
