VIBRATORY HAMMERS
The best solution for civil, municipal, bridge, cofferdam, foundation and etc.

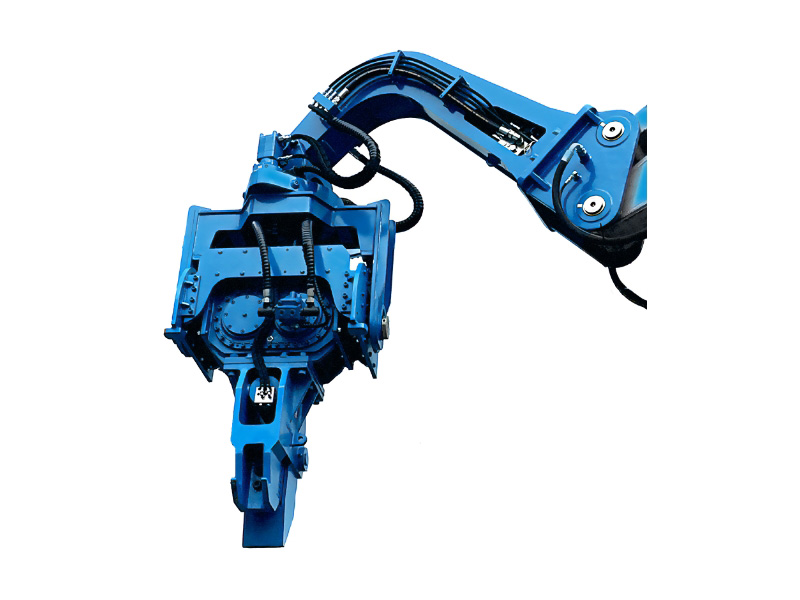

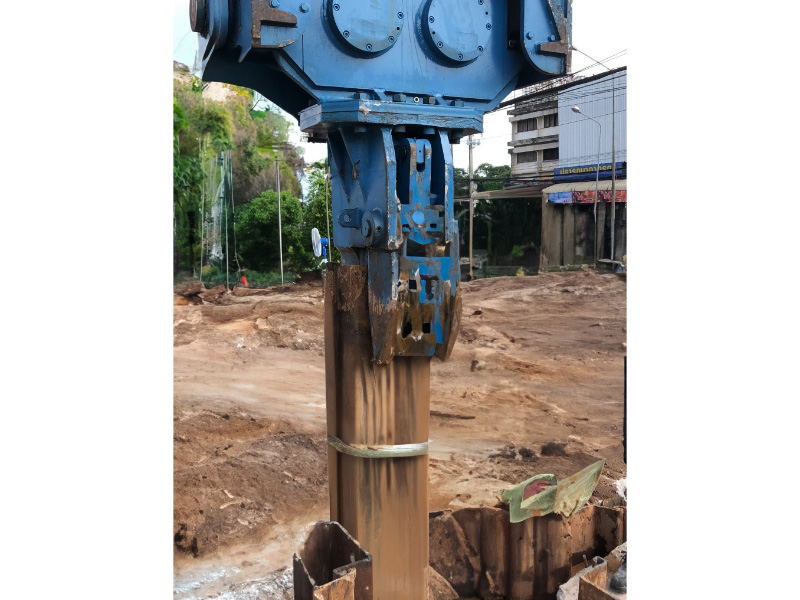

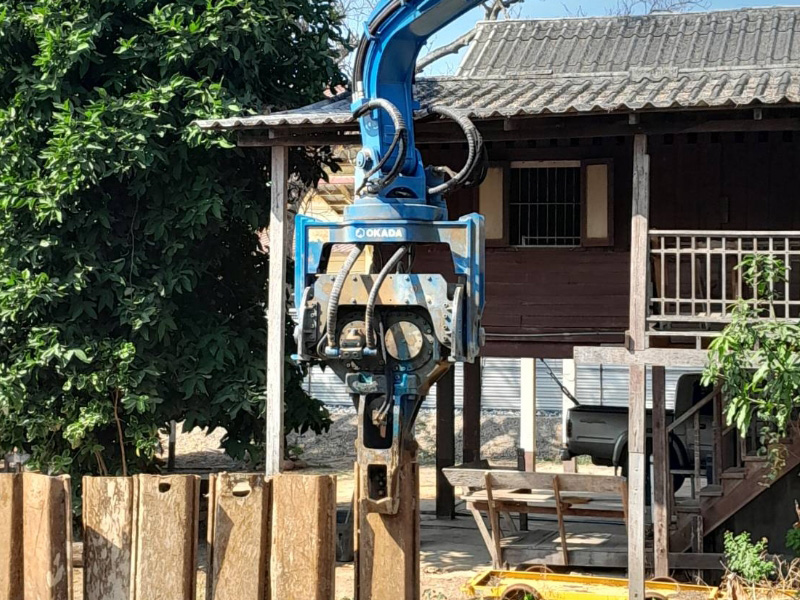

OKADA Vibratory Hammer (Sheet Pile Driver) OVH series

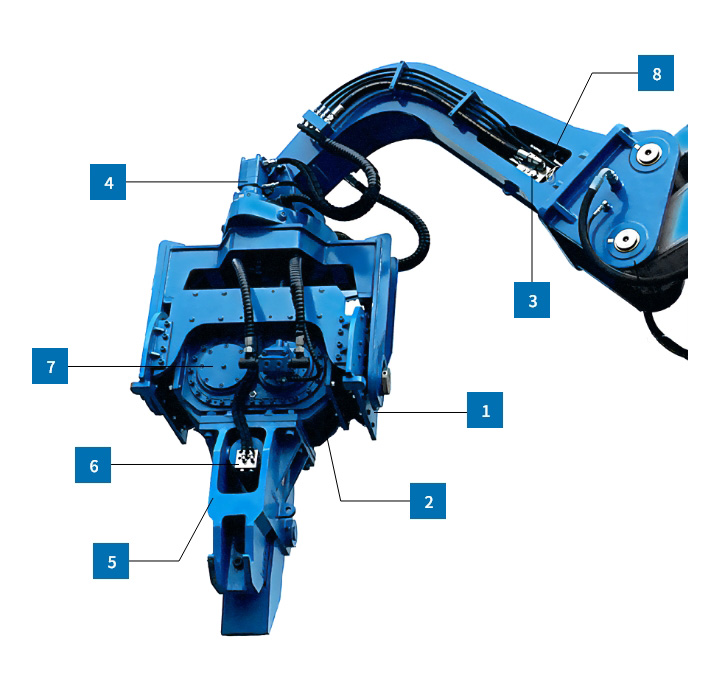

Features
- 1
- High quality hydraulic motor
- 2
- Hydraulic control system:
Specially designed, for vibratory hammers.
- 3
- Hydraulic valve block:
Waterproof soleniod and adapter.
- 4
- Swivel system & Hydraulic motor:
360° full rotation swivel structure, IP66 waterproof and dustproof, very stable and reliable.
- 5
- Clamp:
Cast steel body.
- 6
- Electric control system:
High quality water proof connectors and specially designed control box.
- 7
- Breather:
Balances the air pressure and heat in the gear box.
- 8
- High pressure washable hydraulic oil filter
Specifications
Unit
- Max. Frequency
- Eccentric Force
- Swivel Torque
- Swivel Speed
- Max. Working Pressure
- Oil Flow
- Driver Weight
- Clamp
- Weight
- Gooseneck Arm
- Gooseneck Arm Weight
- Size A
- Size B
- Size C
- Suitable Carrier Range
Max. Frequency
[rpm]
Eccentric Force
[Ton]
Swivel Torque
[Nm]
Swivel Speed
[rpm]
Max. Working Pressure
[bar]
Oil Flow
[L/min]
Driver Weight
[Ton]
Clamp
Weight
[kg]
Gooseneck Arm
Gooseneck Arm Weight
[kg]
Size A
[mm]
Size B
[mm]
Size C
[mm]
Suitable Carrier Range
[Ton]
OVH250
Max. Frequency
3000
Eccentric Force
46.2
Swivel Torque
9200
Swivel Speed
12
Max. Working Pressure
315
Oil Flow
189
Driver Weight
1.7
Clamp
C17, C30B
Weight
C17:520,
C19:550,
C30B:455,
C35E:530
Gooseneck Arm
A200C(K),
A250C,
A300C,
A350C
Gooseneck Arm Weight
A200C:750,
A200CK:750,
A250C:850,
A300C:950,
A350C:1100
Size A
2485
Size B
1245
Size C
737
Suitable Carrier Range
20 - 25
OVH320
Max. Frequency
3000
Eccentric Force
51.3
Swivel Torque
9200
Swivel Speed
12
Max. Working Pressure
315
Oil Flow
240
Driver Weight
1.8
Clamp
C17, C30B
Weight
C17:520,
C19:550,
C30B:455,
C35E:530
Gooseneck Arm
A200C(K),
A250C,
A300C,
A350C
Gooseneck Arm Weight
A200C:750,
A200CK:750,
A250C:850,
A300C:950,
A350C:1100
Size A
2485
Size B
1245
Size C
737
Suitable Carrier Range
27 - 35
OVH400
Max. Frequency
3000
Eccentric Force
56.5
Swivel Torque
11000
Swivel Speed
12
Max. Working Pressure
315
Oil Flow
240/270
Driver Weight
2.15
Clamp
C19, C35E
Weight
C17:520,
C19:550,
C30B:455,
C35E:530
Gooseneck Arm
A200C(K),
A250C,
A300C,
A350C
Gooseneck Arm Weight
A200C:750,
A200CK:750,
A250C:850,
A300C:950,
A350C:1100
Size A
2586
Size B
1460
Size C
737
Suitable Carrier Range
35 - 45
OVH480
Max. Frequency
3000
Eccentric Force
61.6
Swivel Torque
11000
Swivel Speed
12
Max. Working Pressure
315
Oil Flow
270/324
Driver Weight
2.2
Clamp
C19, C35E
Weight
C17:520,
C19:550,
C30B:455,
C35E:530
Gooseneck Arm
A200C(K),
A250C,
A300C,
A350C
Gooseneck Arm Weight
A200C:750,
A200CK:750,
A250C:850,
A300C:950,
A350C:1100
Size A
2586
Size B
1460
Size C
737
Suitable Carrier Range
40 - 50
(Note) The above specifications are subject to change without notice.
The above specifications assume the use of an OKADA universal pin mount.
