TROMMEL SCREENING BUCKETS

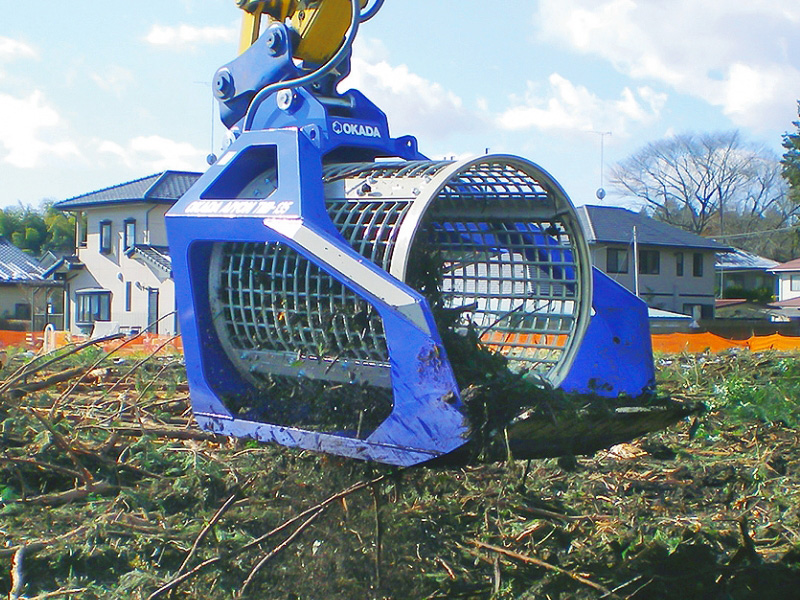

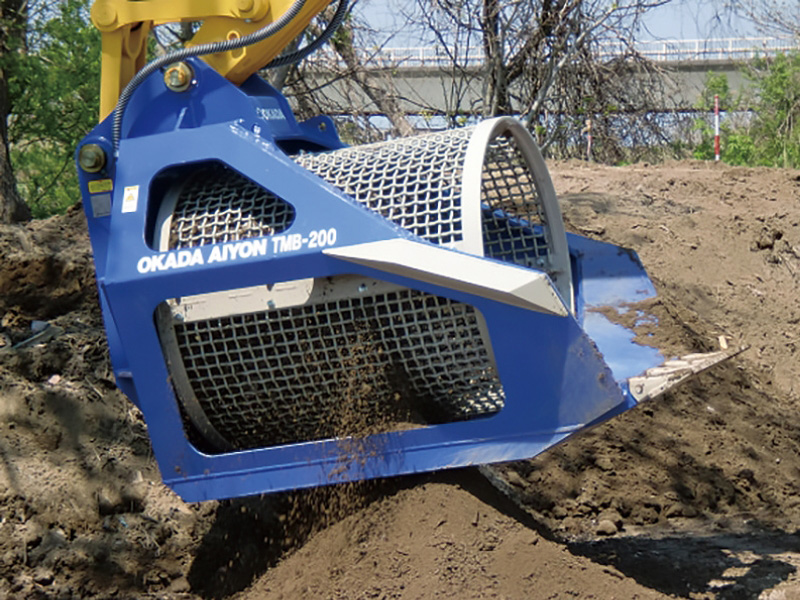

Separates C&D debris out of soil and sand, gravel and aggregates out of soil, non-flammable material from ashes at incinerator, stones out of excavated material and more.

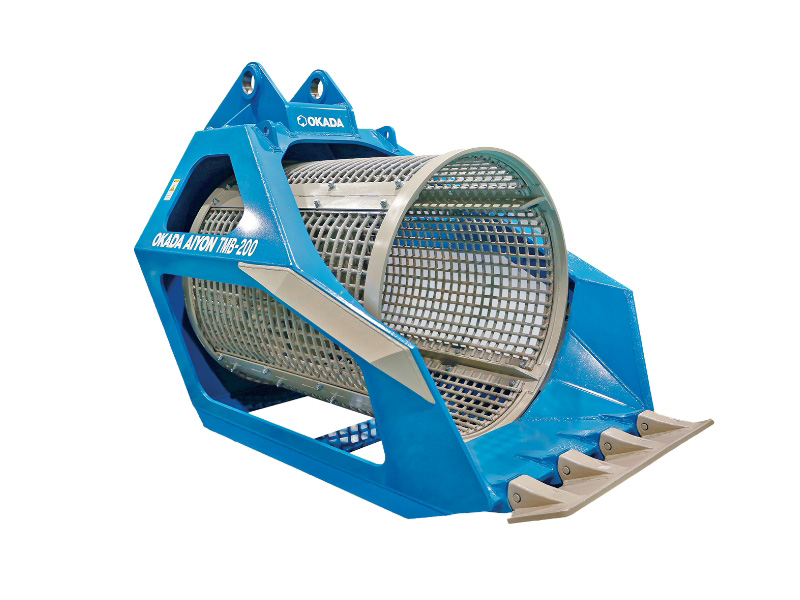

OKADA TMB-200 Screening Bucket

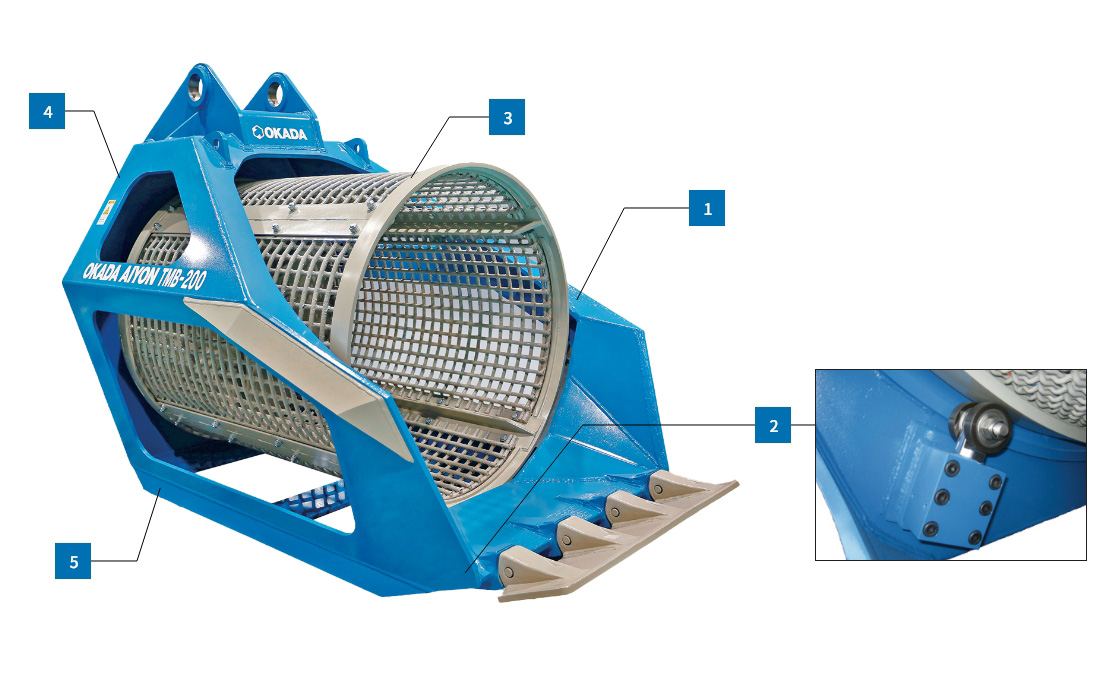

Features
- 1
- Light weight heavy duty frame structure.
- 2
- Front support for heavy loads.
- 3
- Reduced noise & vibration.
- 4
- Unique built-in flow control valve provides smooth operation.
- 5
- Screening debris:
Soil, garbage and various objects.
Specifications
Unit
- Operating Weight
- Overall Length
- Overall Height
- Overall Width
- Screen Diameter
- Screen Length
- Suitable Carrier Range
Operating Weight
[kg]
Overall Length
[mm]
Overall Height
[mm]
Overall Width
[mm]
Screen Diameter
[mm]
Screen Length
[mm]
Suitable Carrier Range
[Ton]
TMB-60
Operating Weight
730
Overall Length
1820
Overall Height
1310
Overall Width
1050
Screen Diameter
815
Screen Length
950
Suitable Carrier Range
6 - 9
TMB-135
Operating Weight
1460
Overall Length
2350
Overall Height
1670
Overall Width
1550
Screen Diameter
1100
Screen Length
1250
Suitable Carrier Range
10 - 16
TMB-200
Operating Weight
2070
Overall Length
2580
Overall Height
1835
Overall Width
1680
Screen Diameter
1200
Screen Length
1400
Suitable Carrier Range
20 - 25
TMB-300
Operating Weight
2950
Overall Length
3100
Overall Height
2140
Overall Width
1860
Screen Diameter
1400
Screen Length
1600
Suitable Carrier Range
30 - 40
(Note) The above specifications are subject to change without notice.
The above specifications assume the use of an OKADA universal pin mount.
