- OMC-160
- OMC-160

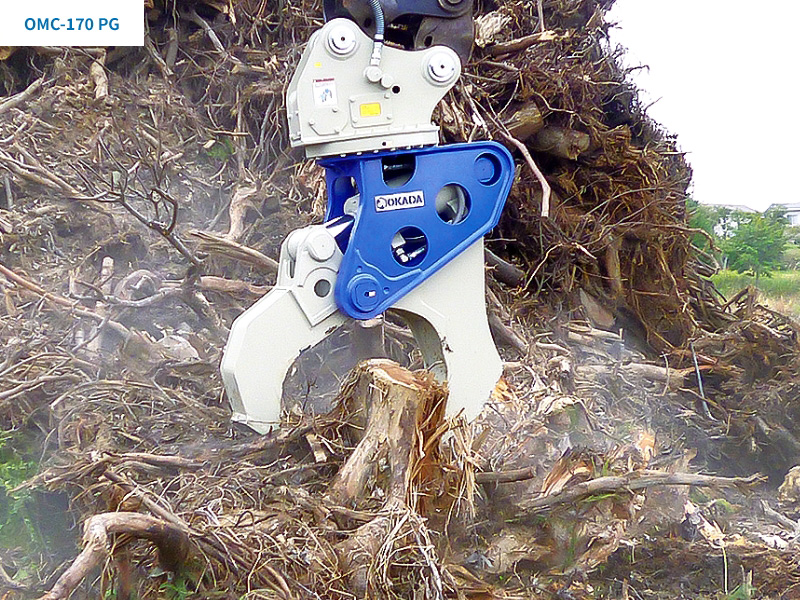

- OMC-170PG
WOOD CUTTERS
OMC wood cutter processes logging materials, root ball, stump, and any other wood products.

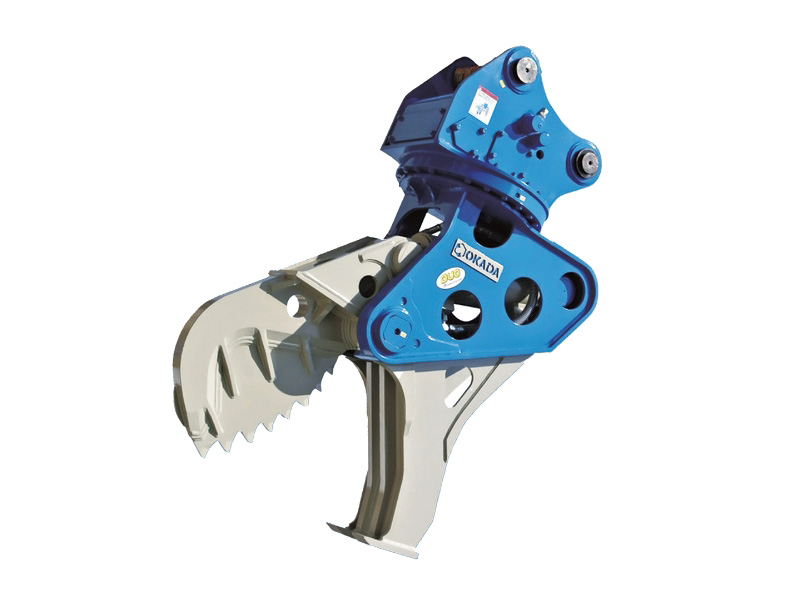

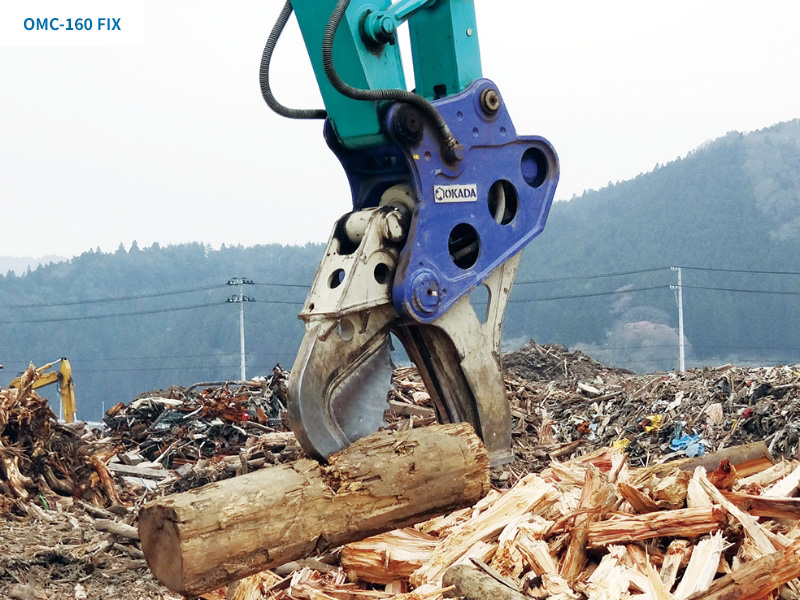

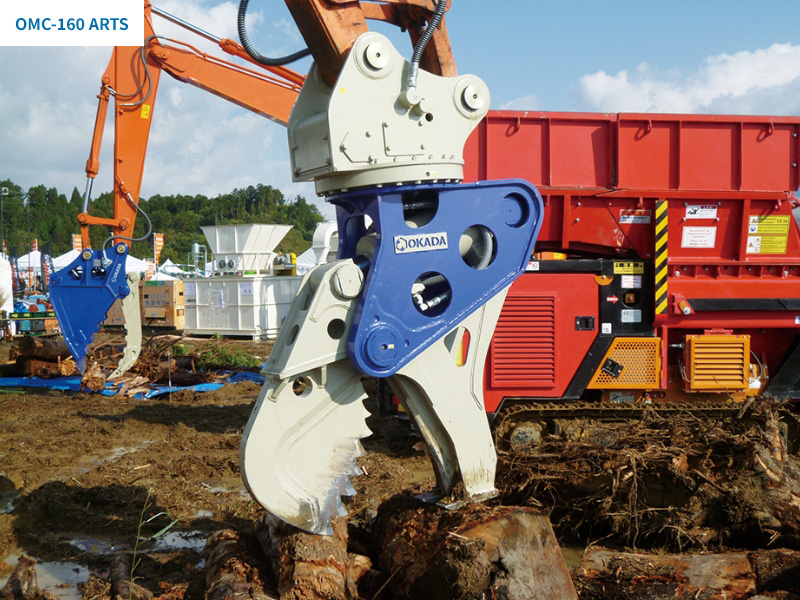

OKADA OMC-160 Wood cutter

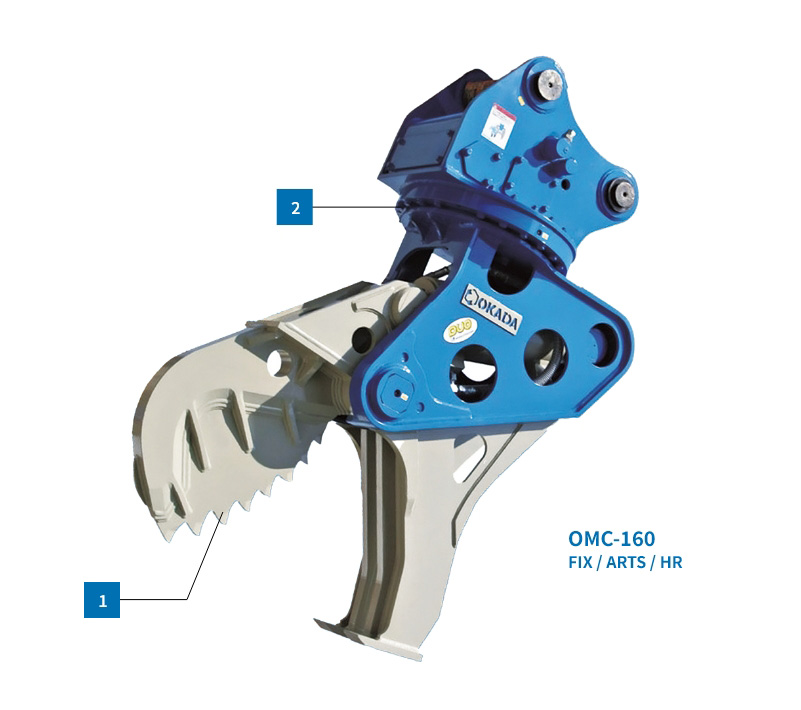

Features
- 1
- A unique saw-shaped blade efficiently processes wood material.
- 2
- Rotating models (ARTS/HR) and fixed models are available.
More Information
For stump processing.
Specifications
Unit
- Rotation Type
- Operating Weight
- Overall Length
- Overall Width
- Max. Jaw Opening
- Crushing Force(Center)
- Excavator Set Pressure
- Speed Valve
- Suitable Carrier Range
Rotation Type
Operating Weight
[kg]
Overall Length
[mm]
Overall Width
[mm]
Max. Jaw Opening
[mm]
Crushing Force(Center)
[kN]
Excavator Set Pressure
[Mpa]
Speed Valve
Suitable Carrier Range
[Ton]
OMC-160
Rotation Type
ARTS/HR
Operating Weight
1385/1375
Overall Length
2120/2120
Overall Width
1595
Max. Jaw Opening
710
Crushing Force(Center)
350
Excavator Set Pressure
32
Speed Valve
-
Suitable Carrier Range
11 - 22
OMC-160
Rotation Type
FIX
Operating Weight
1085
Overall Length
1700
Overall Width
1595
Max. Jaw Opening
710
Crushing Force(Center)
350
Excavator Set Pressure
32
Speed Valve
-
Suitable Carrier Range
11 - 22

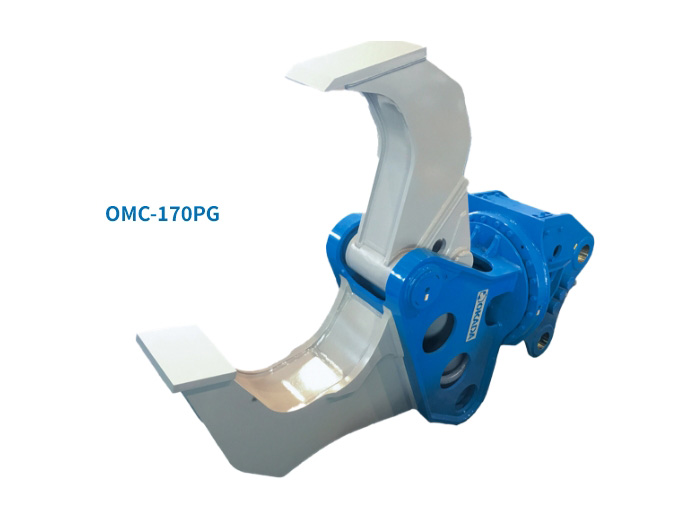

OMC-170PG
Rotation Type
ARTS/HR
Operating Weight
1385/1375
Overall Length
2255/2260
Overall Width
1710
Max. Jaw Opening
865
Crushing Force(Center)
350
Excavator Set Pressure
32
Speed Valve
-
Suitable Carrier Range
11 - 22
(Note) The above specifications are subject to change without notice.
The above specifications assume the use of an OKADA universal pin mount.
