CLEAN CUTTERS

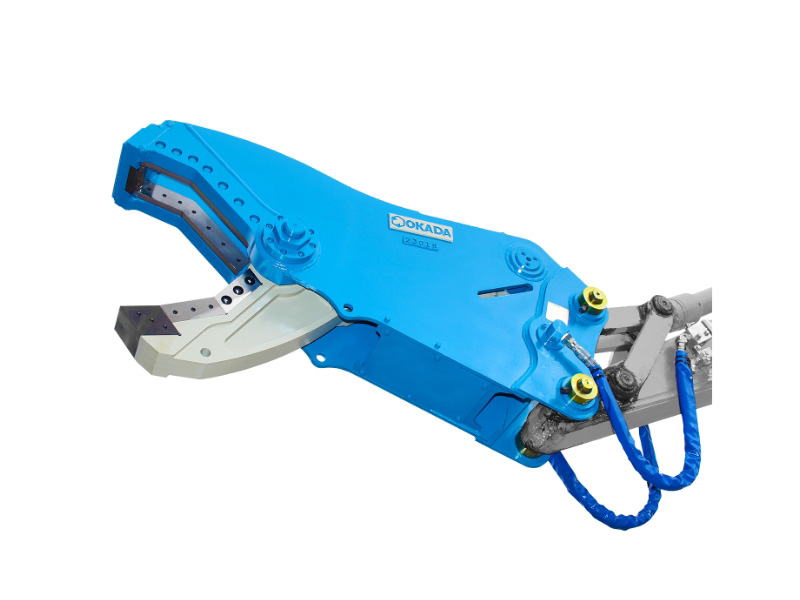

OKADA C-210 Clean cutter

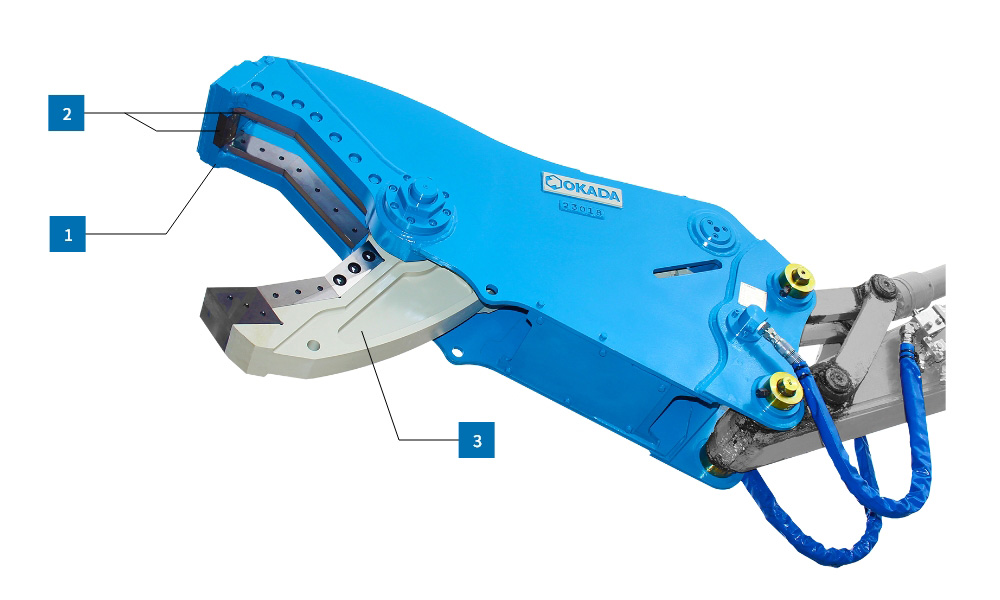

Features
- 1
- Reduces cutting resistance by adopting an asymmetrical frame.
- 2
- Cut two surfaces of material at once.
- 3
- C series gives to the operator good visibility for easy operation.
Specifications
Unit
- Operating Weight
- Overall Length
- Max. Jaw Opening
- Ripping Blade Length
(Arm/Frame) - Cutter Blade Length
(Arm/Frame) - Cutting Force (Tip)
- Cutting Force (Center)
- Excavator Set Pressure
- Speed Valve
- Suitable Carrier Range
Operating Weight
[kg]
Overall Length
[mm]
Max. Jaw Opening
[mm]
Ripping Blade Length
(Arm/Frame)
[mm]
Cutter Blade Length
(Arm/Frame)
[mm]
Cutting Force (Tip)
[kN]
Cutting Force (Center)
[kN]
Excavator Set Pressure
[Mpa]
Speed Valve
Suitable Carrier Range
[Ton]
C-60
Operating Weight
540
Overall Length
1574
Max. Jaw Opening
515
Ripping Blade Length
(Arm/Frame)
116/262
Cutter Blade Length
(Arm/Frame)
330/425
Cutting Force (Tip)
165
Cutting Force (Center)
306
Excavator Set Pressure
24.5
Speed Valve
-
Suitable Carrier Range
6 - 8
C-110
Operating Weight
1020
Overall Length
1946
Max. Jaw Opening
610
Ripping Blade Length
(Arm/Frame)
146/342
Cutter Blade Length
(Arm/Frame)
380/515
Cutting Force (Tip)
237, 270
Cutting Force (Center)
392, 448
Excavator Set Pressure
27.5, 31.4
Speed Valve
-
Suitable Carrier Range
10 - 14
C-210
Operating Weight
1490
Overall Length
2201
Max. Jaw Opening
715
Ripping Blade Length
(Arm/Frame)
146/362
Cutter Blade Length
(Arm/Frame)
450/585
Cutting Force (Tip)
328, 374
Cutting Force (Center)
589, 673
Excavator Set Pressure
27.5, 31.4
Speed Valve
-
Suitable Carrier Range
18 - 21
(Note) The above specifications are subject to change without notice.
The above specifications assume the use of an OKADA universal pin mount.
